Question: P 6 - 2 . Draw the free - body diagrams of the boom ( A B C D ) and the stick

6 - 2 .

Draw the free

-

body diagrams of the boom

\ (

A B C D

\)

and the stick

\ (

E D F G H

\)

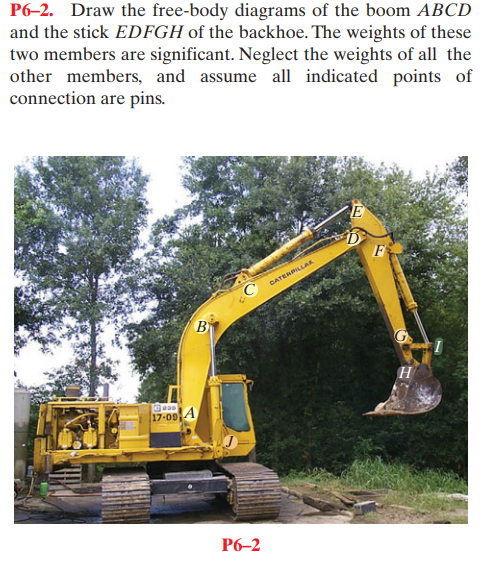

of the backhoe. The weights of these two members are significant. Neglect the weights of all the other members, and assume all indicated points of connection are pins.

6 - 2

P 6 - 2 . Draw the free - body diagrams of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
