Question: P 7 - 2 . In each case, determine the largest internal shear force resisted by the bolt. Include all necessary free - body diagrams.

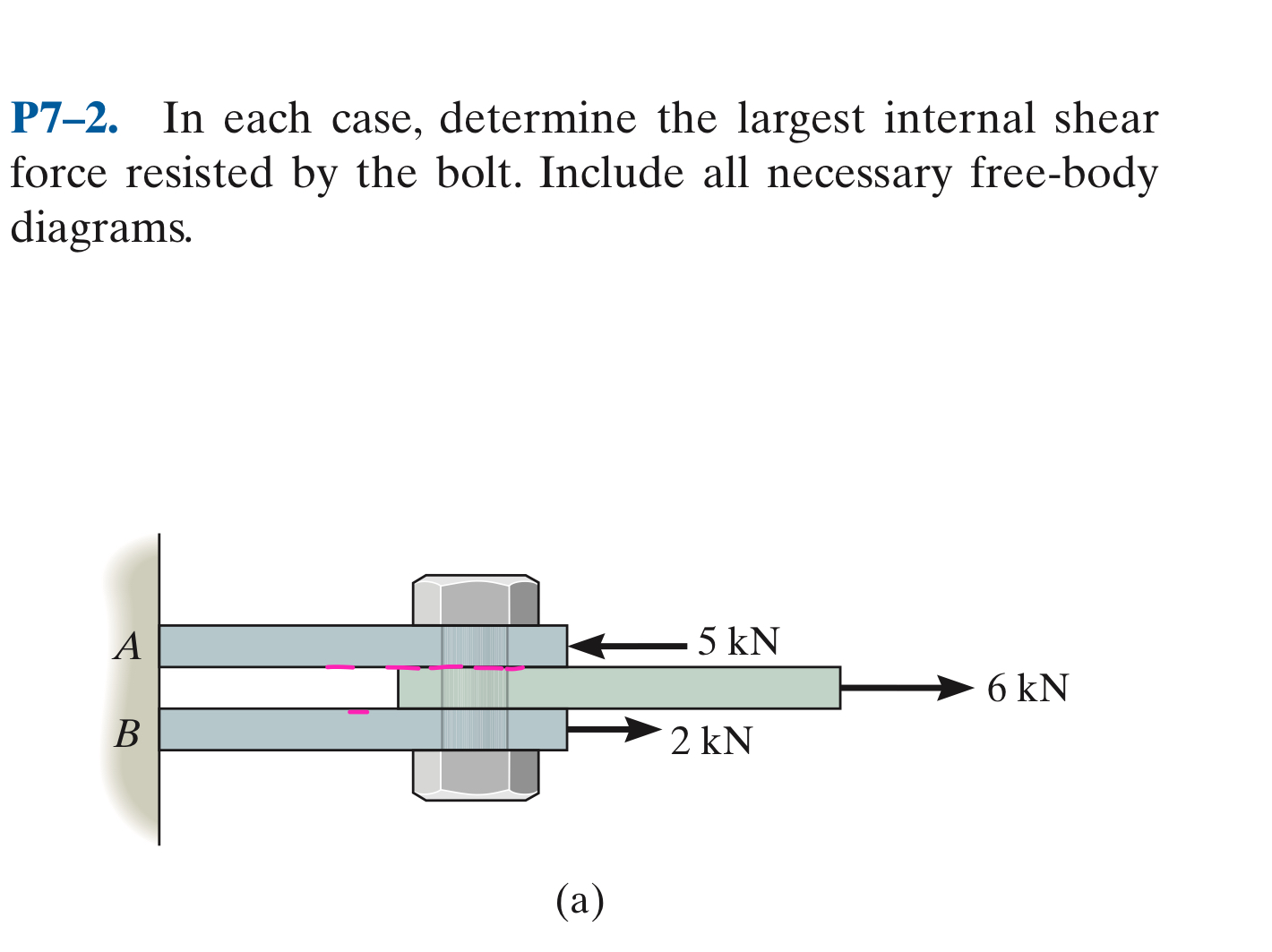

P7-2. In each case, determine the largest internal shear force resisted by the bolt. Include all necessary free-body diagrams.
(a) I dont understand what the 2 and 5 are and why isnt the 5 on the opposite side of the other 5 and what are A and B i dont get it
P 7 - 2 . In each case, determine the largest

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
