Packaging

In this process the quality controller selects randomly group of boxes and make sure if the box confirms to the standards or not. The collected data is presented in the table below

Sample	Number of Boxes Selected	Number of Boxes confirms the Standards	Sample	Number of Boxes Selected	Number of Boxes confirms the Standards	Sample	Number of Boxes Selected	Number of Boxes confirms the Standards	Sample	Number of Boxes Selected	Number of Boxes confirms the Standards
1	205	196	11	185	169	21	210	200	31	185	175
2	155	145	12	175	162	22	200	190	32	185	180
3	185	175	13	195	179	23	205	195	33	180	170
4	205	195	14	195	184	24	195	185	34	175	165
5	195	185	15	185	169	25	195	180	35	175	165
6	205	195	16	190	174	26	205	195	36	195	185
7	195	185	17	175	159	27	205	195	37	185	180
8	190	180	18	180	166	28	205	195	38	175	165
9	195	185	19	195	179	29	210	195	39	190	180
10	205	195	20	185	169	30	210	200	40	180	170

use attribute chart

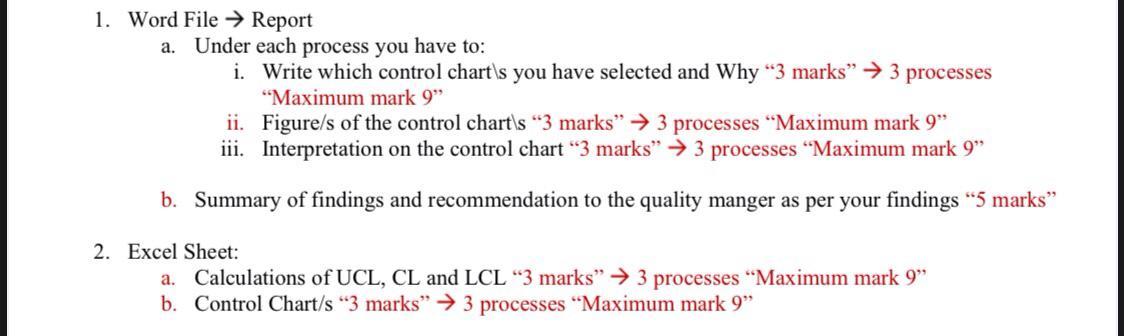

1. Word File Report a. Under each process you have to: i. Write which control chart's you have selected and Why 3 marks" 3 processes "Maximum mark 9" ii. Figure/s of the control chart s 3 marks 3 processes Maximum mark 9" iii. Interpretation on the control chart 3 marks 3 processes Maximum mark 9" b. Summary of findings and recommendation to the quality manger as per your findings "5 marks" 2. Excel Sheet: a. Calculations of UCL, CL and LCL 3 marks 3 processes Maximum mark 9" b. Control Chart/s 3 marks 3 processes Maximum mark 9" 1. Word File Report a. Under each process you have to: i. Write which control chart's you have selected and Why 3 marks" 3 processes "Maximum mark 9" ii. Figure/s of the control chart s 3 marks 3 processes Maximum mark 9" iii. Interpretation on the control chart 3 marks 3 processes Maximum mark 9" b. Summary of findings and recommendation to the quality manger as per your findings "5 marks" 2. Excel Sheet: a. Calculations of UCL, CL and LCL 3 marks 3 processes Maximum mark 9" b. Control Chart/s 3 marks 3 processes Maximum mark 9
