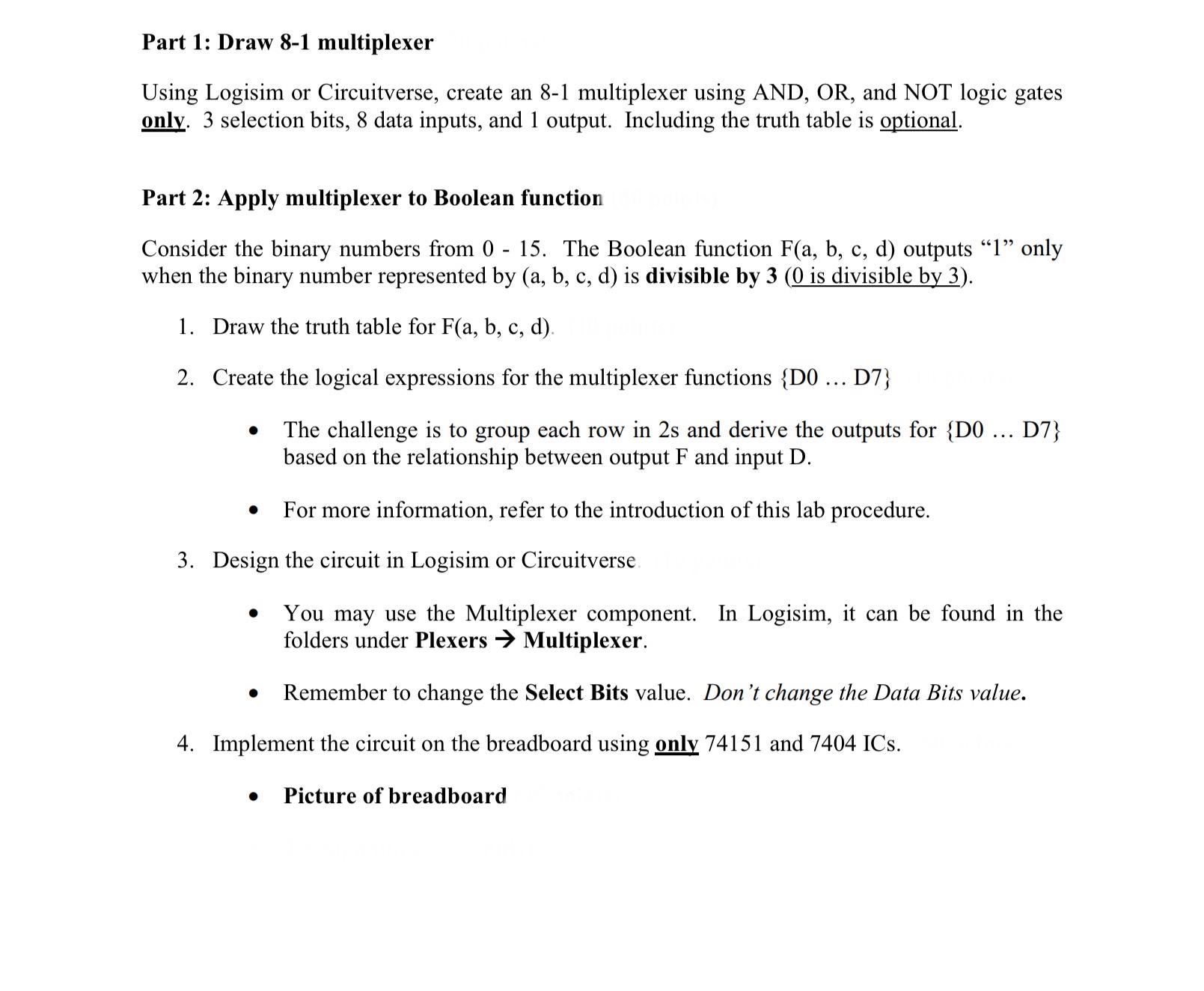

Question: Part 1 : Draw 8 - 1 multiplexer Using Logisim or Circuitverse, create an 8 - 1 multiplexer using AND, OR , and NOT logic
Part : Draw multiplexer
Using Logisim or Circuitverse, create an multiplexer using AND, OR and NOT logic gates only. selection bits, data inputs, and output. Including the truth table is optional.
Part : Apply multiplexer to Boolean function
Consider the binary numbers from The Boolean function outputs only when the binary number represented by is divisible by is divisible by
Draw the truth table for
Create the logical expressions for the multiplexer functions dotsD
The challenge is to group each row in and derive the outputs for dotsD based on the relationship between output and input
For more information, refer to the introduction of this lab procedure.
Design the circuit in Logisim or Circuitverse
You may use the Multiplexer component. In Logisim, it can be found in the folders under Plexers Multiplexer.
Remember to change the Select Bits value. Don't change the Data Bits value.
Implement the circuit on the breadboard using only and ICs.
Picture of breadboard
