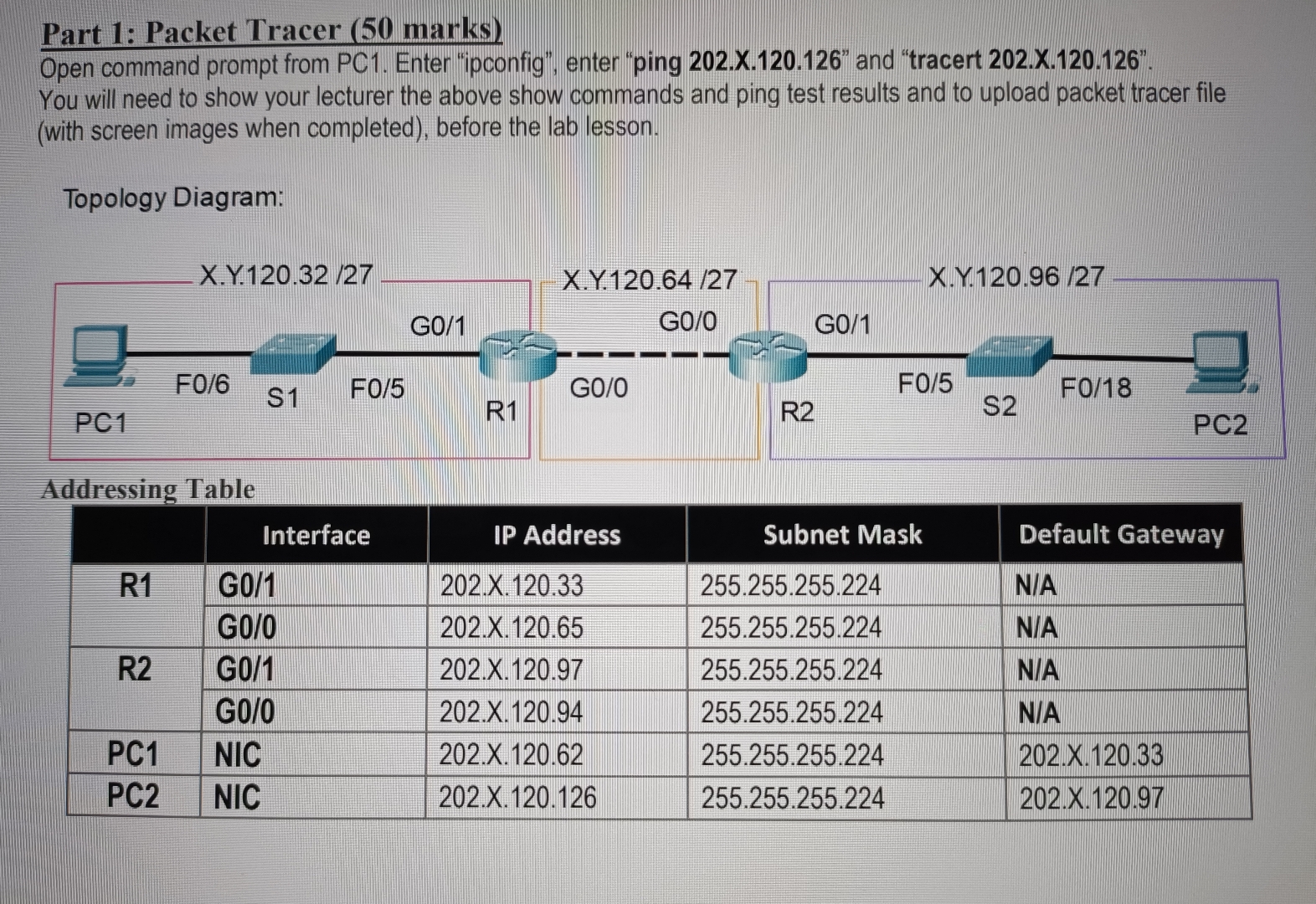

Part $1$: Packet Tracer $(50$ marks$)$

Open command prompt from PC$1.$ Enter "ipconfig", enter "ping $202.$X$\mathrm{.}120\mathrm{.}126"$ and "tracert $202.$X$\mathrm{.}120\mathrm{.}126".$ You will need to show your lecturer the above show commands and ping test results and to upload packet tracer file $($with screen images when completed$),$ before the lab lesson.

Topology Diagram:

$\backslash$table$[[,$Interface,IP Address,Subnet Mask,Default Gateway$],[$R$1,$Go$/1,202.$X$.120\mathrm{.}33,255\mathrm{.}255\mathrm{.}255\mathrm{.}224,$N$/$A$],[$G$0/0,202.$X$.120\mathrm{.}65,255\mathrm{.}255\mathrm{.}255\mathrm{.}224,$N$/$A$],[$R$2,$G$0/1,202.$X$.120\mathrm{.}97,255\mathrm{.}255\mathrm{.}255\mathrm{.}224,$N$/$A$],[$G$0/0,202.x\mathrm{.}120\mathrm{.}94,255\mathrm{.}255\mathrm{.}255\mathrm{.}224,$N$/$A$],[$PC$1,$NIC,$202.$X$\mathrm{.}120\mathrm{.}62,255\mathrm{.}255\mathrm{.}255\mathrm{.}224,202.$X$\mathrm{.}120\mathrm{.}33],[$NIC$,202.$X$\mathrm{.}120\mathrm{.}126,255\mathrm{.}255\mathrm{.}255\mathrm{.}224,202.$X$\mathrm{.}120\mathrm{.}97]]$
