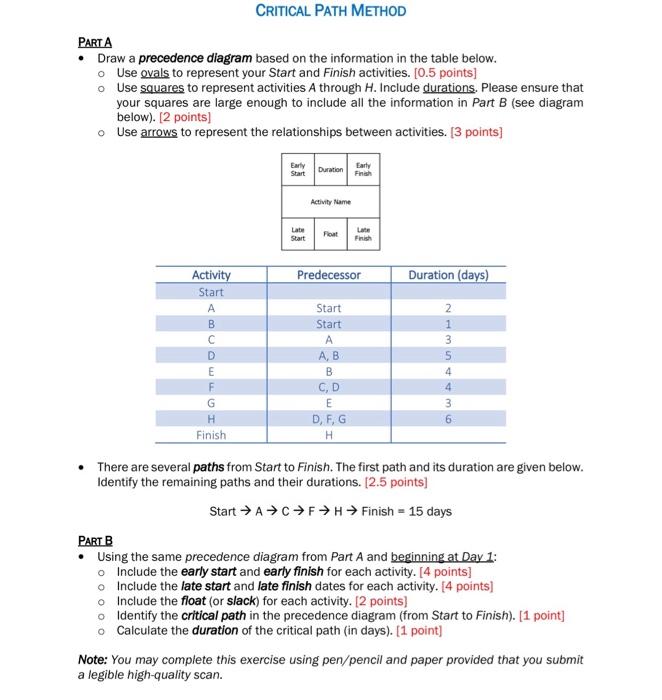

PART A - Draw a precedence diagram based on the information in the table below. - Use ovals to represent your Start and Finish activities. [0.5 points] - Use squares to represent activities A through H. Include durations. Please ensure that your squares are large enough to include all the information in Part B (see diagram below). [2 points] - Use arrows to represent the relationships between activities. [3 points] - There are several paths from Start to Finish. The first path and its duration are given below. Identify the remaining paths and their durations. [2.5 points] StartACFHFinish=15days PART B - Using the same precedence diagram from Part A and beginning at Day 1: Include the early start and early finish for each activity. [4 points] Include the late start and late finish dates for each activity. [4 points] Include the float (or slack) for each activity. [2 points] Identify the critical path in the precedence diagram (from Start to Finish). [1 point] Calculate the duration of the critical path (in days). [1 point] Note: You may complete this exercise using pen/pencil and paper provided that you submit a legible high-quality scan
