Question: Part A - Minimum diameter A solid circular shaft is required to transmit P = 4 9 k W from a motor to a machine.

Part A - Minimum diameter

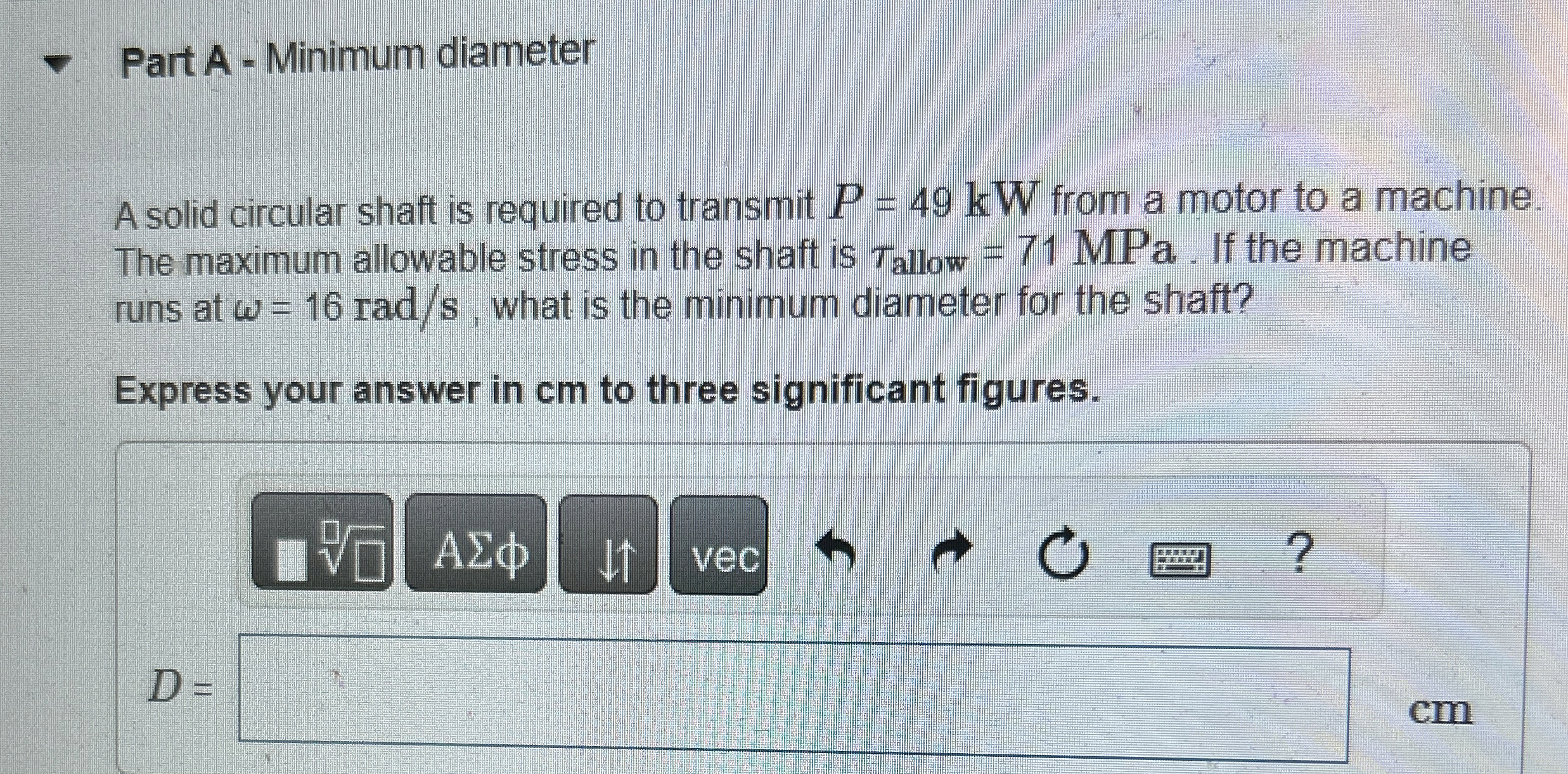

A solid circular shaft is required to transmit P=49kW from a motor to a machine. The maximum allowable stress in the shaft is allow=71MPa. If the machine runs at =16 rad/s, what is the minimum diameter for the shaft?
Express your answer in cm to three significant figures.
Part A - Minimum diameter A solid circular shaft

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
