Question: Replace the loading acting on the beam by a single resultant force. ( Figure 1 ) Figure 1 of 1 Part A Determine the magnitude

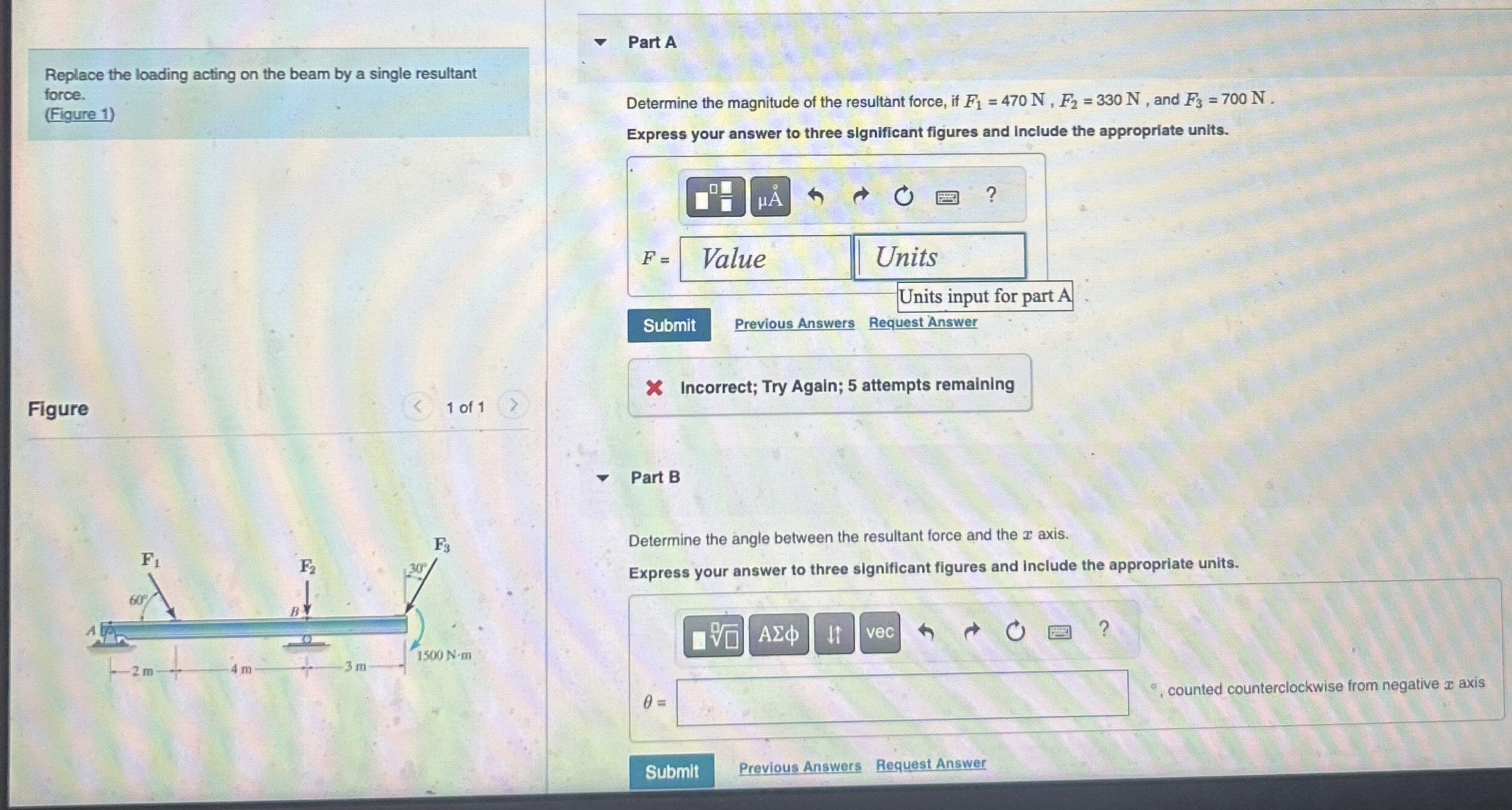

Replace the loading acting on the beam by a single resultant force.
(Figure 1)
Figure
1 of 1
Part A
Determine the magnitude of the resultant force, if F1=470N,F2=330N, and F3=700N.
Express your answer to three significant figures and Include the appropriate units.
Previous Answers
Request Answer
Incorrect; Try Again; 5 attempts remaining
Part B
Determine the angle between the resultant force and the x axis.
Express your answer to three significant figures and include the appropriate units.
=, counted counterclockwise from negative x axis
Previous Answers
Request Answer
Replace the loading acting on the beam by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading acting on the beam by a single resultant force. ( Figure 1 ) Figure 1 of 1 Previous Answers F = 4 6 1 Determine the magnitude of the resultant force, if F 1 = 4 7 0 N , F 2 = 3 3...

Q:

Part A Replace the loading acting on the beam by a single resultant force. (Figure 1) Determine the magnitude of the resultant force, if F1 = 450 N, F2 = 330 N, and F3 = 710 N Express your answer to...

Q:

User Settings Replace the loading acting on the beam by a single resultant force. ( Elgure 1 ) Part A Determine the magnitude of the resultant force, if F 1 = 4 5 0 N , F 2 = 3 1 0 N , and F 3 = 7 5...

Q:

SHW - 4 B: Ch . 4 - Vectors ( Moments ) in 2 D and 3 D Problem 4 . 1 1 7 Replace the loading acting on the beam by a single resultant force. Take F 1 = 4 3 0 N , F 2 = 2 8 0 N , F 3 = 6 9 0 N . (...

Q:

Replace the loading acting on the beam by a single resultant force. Take F 1 = 4 8 0 N , F 2 = 3 1 0 N , F 3 = 7 4 0 N . - Determine the magnitude of the resultant force. - Determine the angle...

Q:

4 - 1 3 1 . Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from end A . * 4 - 1 3 2 . Replace the loading acting on the beam by a single...

Q:

Part 2 : Free Response Problem. Write your solution clearly in the bluebook. Problem 7 . For the beam shown below: a ) Replace the loading acting on the beam by an equivalent resultant force (...

Q:

Problem 7 . For the beam shown below: a ) Replace the loading acting on the beam by an equivalent resultant force ( determine its magnitude and direction ) and a couple moment acting at A . b )...

Q:

Replace the loading acting on the beam by a single resultant force. ( Figure 1 ) Figure 1 of 1 Part A Determine the magnitude of theresultant force, if F 1 = 4 7 0 N , F 2 = 3 3 0 N , and F 3 = 7 3 0...

Q:

Replace the loading acting on the beam with a single resultant force. Take F 1 = 420 N , F 2 = 300 N , F 3 = 740 N . (Figure 1) Part A Determine the magnitude of the resultant force. Part B Determine...
