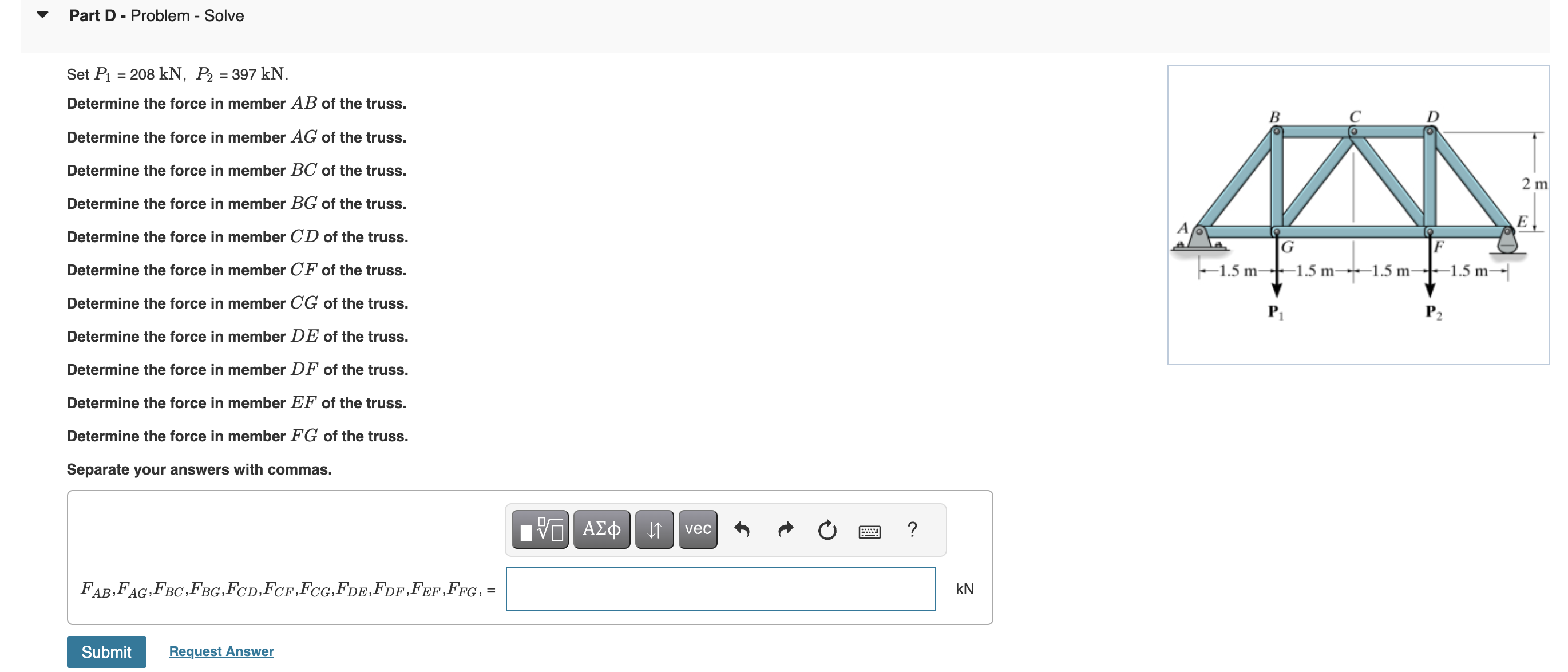

Question: Part D - Problem - Solve Set P 1 = 2 0 8 k N , P 2 = 3 9 7 k N .

Part D

-

Problem

-

Solve

Set

P_{1} = 208 k N, P_{2} = 397 k N .

Determine the force in member

A B

of the truss.

Determine the force in member

A G

of the truss.

Determine the force in member

B C

of the truss.

Determine the force in member

B G

of the truss.

Determine the force in member

C D

of the truss.

Determine the force in member

C F

of the truss.

Determine the force in member

C G

of the truss.

Determine the force in member

D E

of the truss.

Determine the force in member

D F

of the truss.

Determine the force in member

E F

of the truss.

Determine the force in member

F G

of the truss.

Separate your answers with commas.

F_{A B}, F_{A G}, F_{B C}, F_{B G}, F_{C D}, F_{C F}, F_{C G}, F_{D E}, F_{D F}, F_{E F}, F_{F G}, =

Part D - Problem - Solve Set P 1 = 2 0 8 k N , P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
