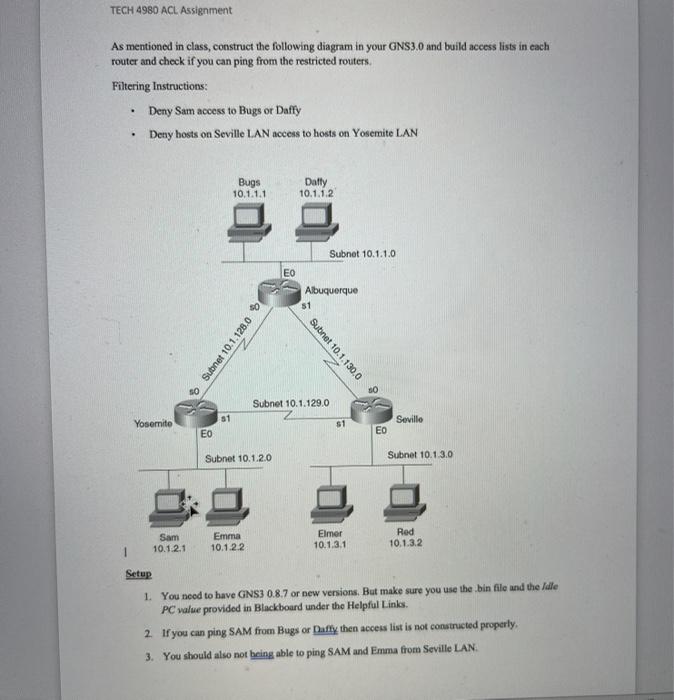

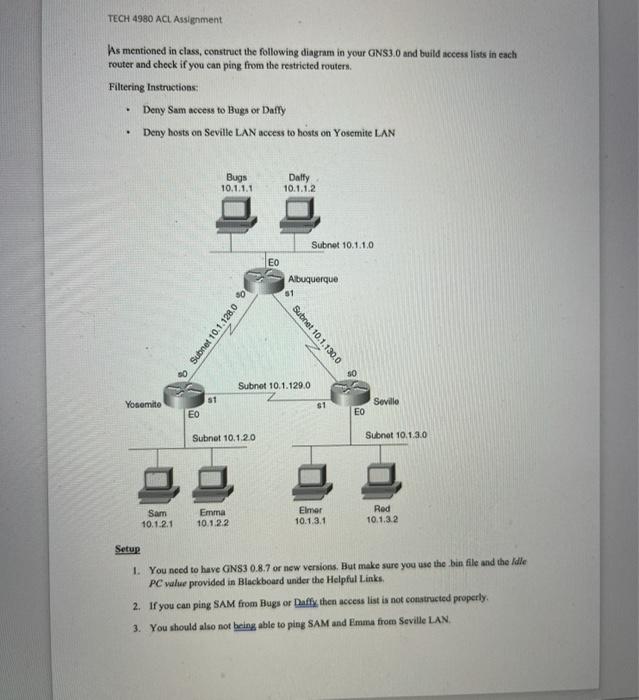

TECH 4980 ACL Assignment As mentioned in class, construct the following diagram in your GNS3.0 and build nccess lists in each router and check if you can ping from the restricted routers Filtering Instructions: Deny Sam access to Bugs or Daffy Deny hosts on Seville LAN access to hosts on Yosemite LAN Bugs 10.1.1.1 Dally 10.1.1.2 Subnet 10.1.1.0 EO Albuquerque Subnet 10.1.128 0 % Subnet 10.1.130.0 50 Subnet 10.1.129.0 Yosemite 81 $1 Seville EO EO Subnet 10.1.20 Subnet 10.1.3.0 Sam 10.1.2.1 Emma 10.1.22 Elmer 10.1.3.1 Red 10.1.3.2 Setup 1. You need to have GNS3 0.8.7 or new versions. But make sure you use the bin file and the Idle PC value provided in Blackboard under the Helpful Links 2. If you can ping SAM from Bugs or Daffy then access list is not constructed properly 3. You should also not being able to ping SAM and Emma from Seville LAN. TECH 4980 ACL Assignment As mentioned in class, construct the following diagram in your GNS3.0 and build access lists in cach router and check if you can ping from the restricted routers Filtering Instructions: Deny Sam access to Bugs or Daffy Deny hosts on Seville LAN access to hosts on Yosemite LAN Bugs 10.1.1.1 Dafly 10.1.1.2 Subnet 10.1.1.0 EO Albuquerque 6 Subnet 10.1.128.0 Subnet 10.1.130,0 Subnet 10.1.129.0 51 Sevilla Yosemite 51 EO ED Subnet 10.1.2.0 Subnet 10.1.3.0 Sam 10.12.1 Emma 10.1.2.2 Elmer 10.1.3.1 Red 10.1.3.2 Setup 1. You need to have GNS3 0.8.7 or new versions. But make sure you use the bin file and the Idle PC value provided in Blackboard under the Helpful Links 2. If you can ping SAM from Bugs or Duffy then access list is not constructed properly. 3. You should also not being able to ping SAM and Emma from Seville LAN
