Question: Quistion 3: (3 Marks) a-Draw a 20 mm line that is perpendicular on the plane (a,b,d) from point c that lies on the plane.

Quistion 3: (3 Marks) a-Draw a 20 mm line that is perpendicular

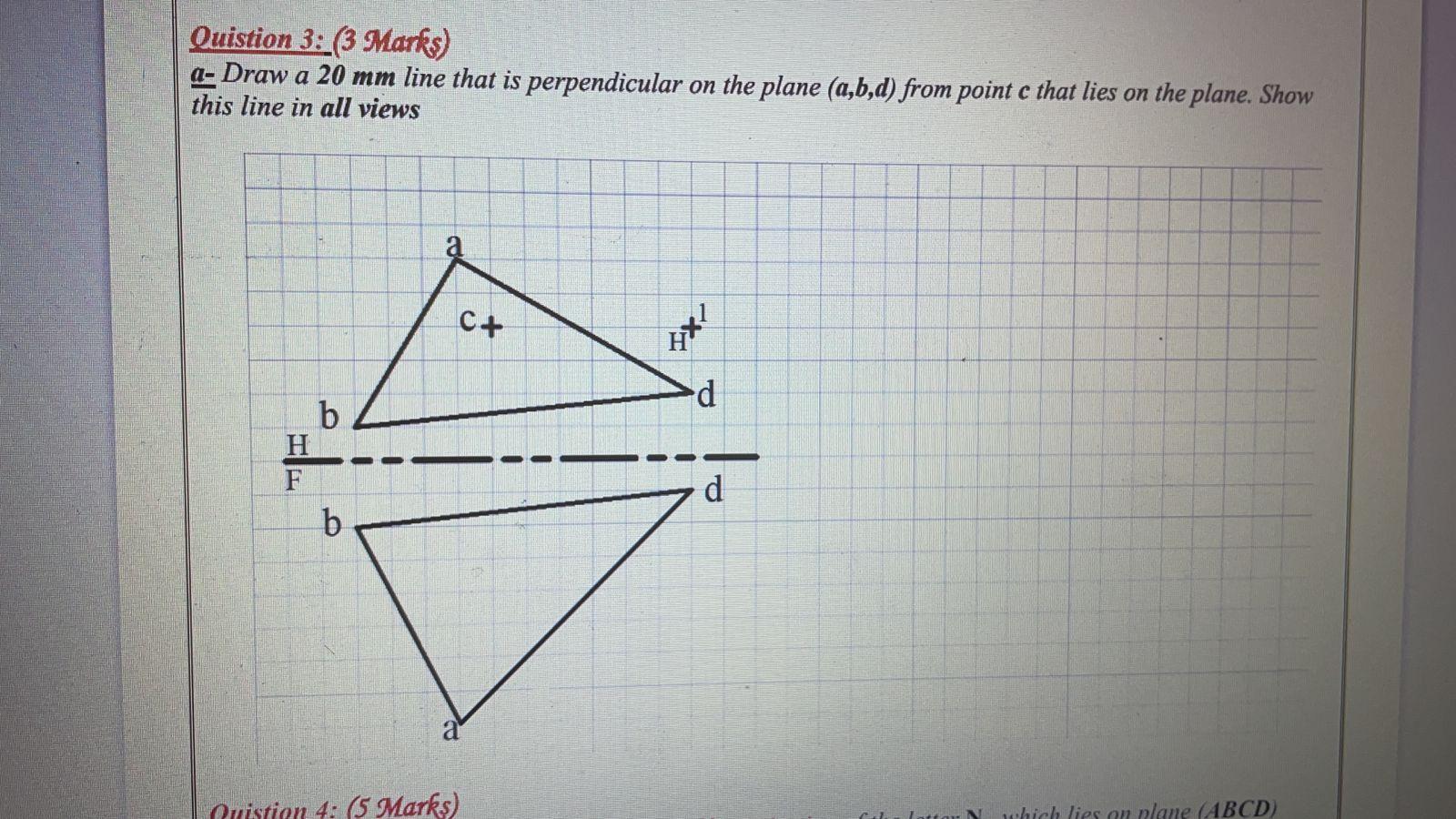

Quistion 3: (3 Marks) a-Draw a 20 mm line that is perpendicular on the plane (a,b,d) from point c that lies on the plane. Show this line in all views H F b b a C+ a Quistion 4: (5 Marks) - 4x! d d which lies on plane (ABCD)
