Please answer using the format given

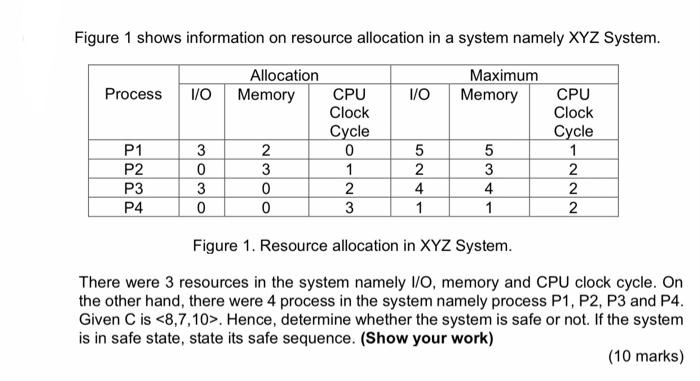

Figure 1 shows information on resource allocation in a system namely XYZ System. Process I/O 1/O Allocation Memory CPU Clock Cycle 0 1 2 0 3 Maximum Memory CPU Clock Cycle 5 1 3 4 1 2 P1 P2 3 0 3 0 OWN P3 5 2 4 1 NNN P4 Figure 1. Resource allocation in XYZ System. There were 3 resources in the system namely I/O, memory and CPU clock cycle. On the other hand, there were 4 process in the system namely process P1, P2, P3 and P4. Given C is . Hence, determine whether the system is safe or not. If the system is in safe state, state its safe sequence. (Show your work) (10 marks) Template for Banker's Algorithm Tutorial 7: Question No. Max Allocation Available Need (Max - allocation) Safe sequence If Need ce Available then TRUE TRUE New available resource Available + Allocation P P P Next claim/available = Current Available/Resource - Total allocation Conclusion
