Question: please do fast i will give you thumbs up The following D.C is a combination of and RC circuit and RL circuit. After the switch

please do fast i will give you thumbs up

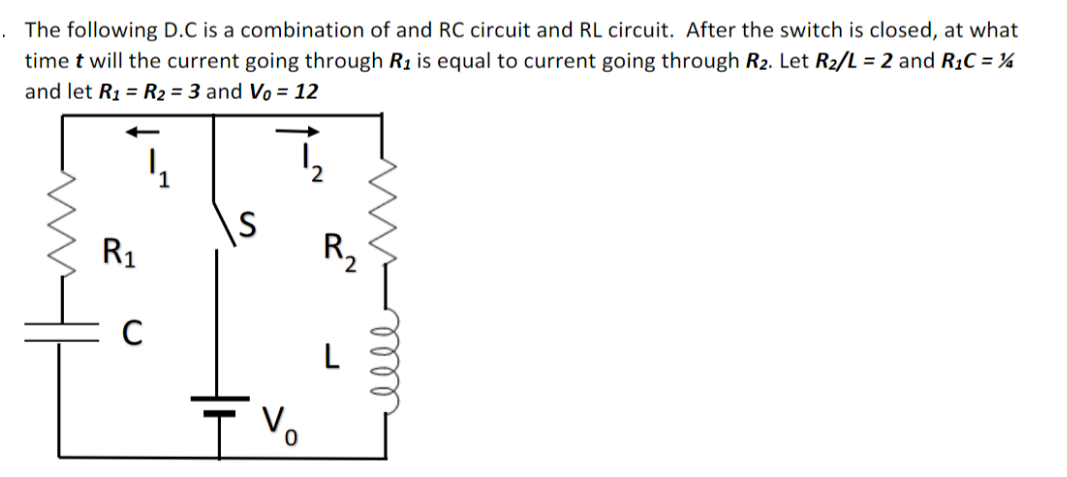

The following D.C is a combination of and RC circuit and RL circuit. After the switch is closed, at what time t will the current going through R; is equal to current going through R2. Let Fig/f. = 2 and RIC = K and let R; = R2: 3 and V9: 12

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
