Please DRAW the ladder logic for the scenario below.

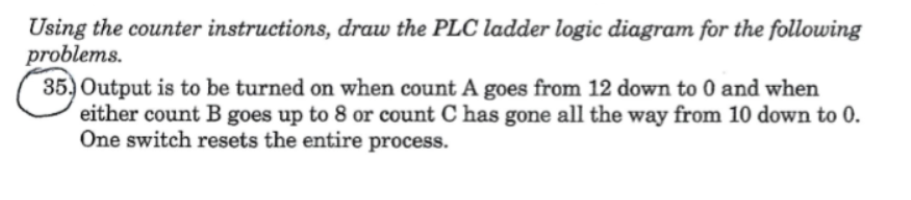

Using the counter instructions, draw the PLC ladder logic diagram for the following problems. 35. Output is to be turned on when count A goes from 12 down to 0 and when either count B goes up to 8 or count C has gone all the way from 10 down to 0 . One switch resets the entire process
