Please help

Below is the java codes for the Graph class:

import java.io.BufferedReader; import java.io.File; import java.io.FileInputStream; import java.io.FileNotFoundException; import java.io.IOException; import java.io.InputStreamReader; import java.util.ArrayList; import java.util.LinkedList; import java.util.StringTokenizer;

/* * To change this template, choose Tools | Templates * and open the template in the editor. */

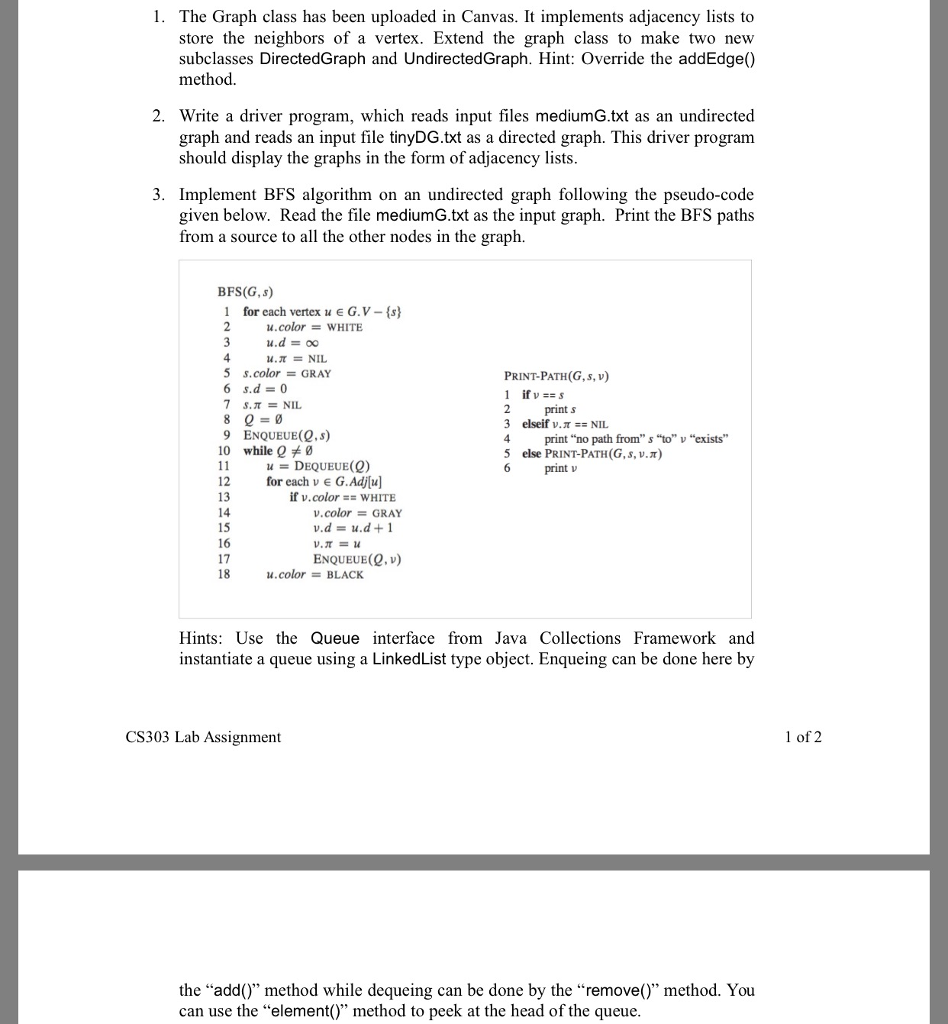

public class Graph { public int V; public int E; public LinkedList[] adj; public Graph() { V = 0; E = 0; } public Graph(BufferedReader reader) throws IOException { String line; line = reader.readLine(); V = Integer.parseInt(line); line = reader.readLine(); E = Integer.parseInt(line); adj = new LinkedList[V]; for (int v = 0; v (); } while ((line = reader.readLine()) != null) { int tempV1, tempV2; StringTokenizer st = new StringTokenizer(line, " "); tempV1 = Integer.parseInt(st.nextToken()); tempV2 = Integer.parseInt(st.nextToken()); addEdge(tempV1, tempV2); } } public void addEdge(int v, int w) { } public String tostring() { String s = new String(); s = "There are "+V+" vertices and "+E+" edges "; for(int i=0;i l. The Graph class has been uploaded in Canvas. It implements adjacency lists to store the neighbors of a vertex. Extend the graph class to make two new subclasses DirectedGraph and Undirected Graph. Hint: Override the addEdge() method 2. Write a driver program, which reads input files mediumG.txt as an undirected graph and reads an input file tinyDG.txt as a directed graph. This driver program should display the graphs in the form of adjacency lists. 3. Implement BFS algorithm on an undirected graph following the pseudo-code given below. Read the file mediumG.txt as the input graph. Print the BFS paths from a source to all the other nodes in the graph. BFS (G, s) 1 for each vertex u E G. V-ts) u color WHITE u.d 5 s color GRAY PRINT-PATH(G, s, v) 6 s.d 7 s. NIL 2 prints 3 elseif v NIL 9 ENQUEUE(0, s) 4 print "no path from" s "to" v "exists" 10 while 5 else PRINT-PATH (G, s, v.2r) 11 DEQUEUE(Q) 6 print v 12 for each v e G.Adjlu] 13 if v color WHITE v. color GRAY 15 v.d 16 ENQUEUE(Q, v) 18 1. BLACK color Hints: Use the Queue interface from Java Collections Framework and instantiate a queue using a LinkedList type object. Enqueing can be done here by CS303 Lab Assignment the "add() method while dequeing can be done by the "remove method. You can use the "element()" method to peek at the head of the queue. 1 of 2
