Please help me answer the following questions and show work. Please show work on PAPER and write it out. Thank you!

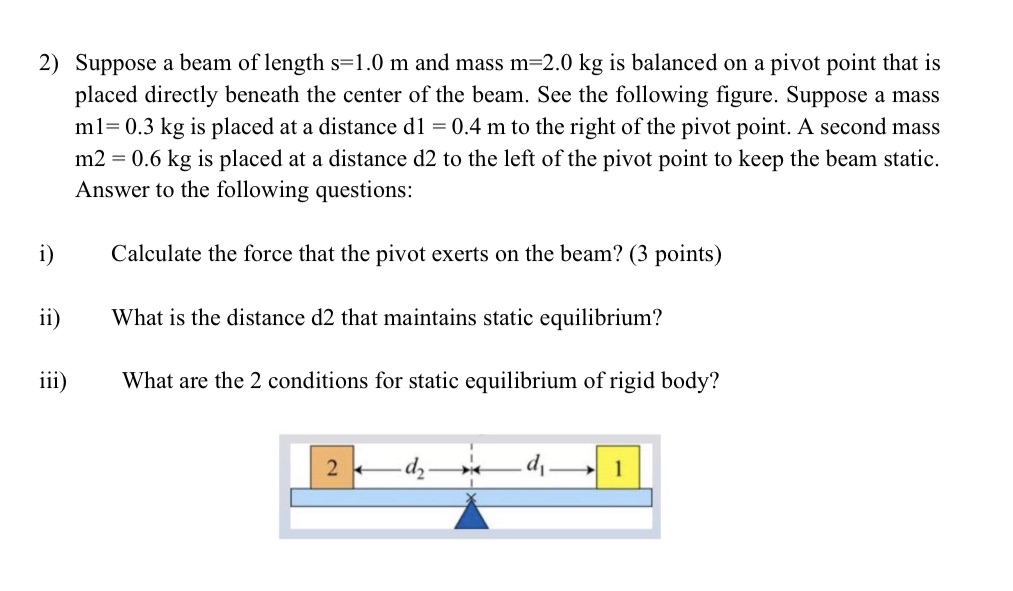

2) Suppose a beam of length s=1.0 1n and mass m=2.0 kg is balanced on a pivot point that is placed directly beneath the center of the beam. See the following gure. Suppose a mass ml: 0.3 kg is placed at a distance d1 = 0.4 in to the right of the pivot point. A second mass m2 = 0.6 kg is placed at a distance d2 to the left of the pivot point to keep the beam static. Answer to the following questions: i) Calculate the force that the pivot exerts on the beam? (3 points) ii) What is the distance d2 that maintains static equilibrium? iii) What are the 2 conditions for static equilibrium of rigid body? I I Hi |
