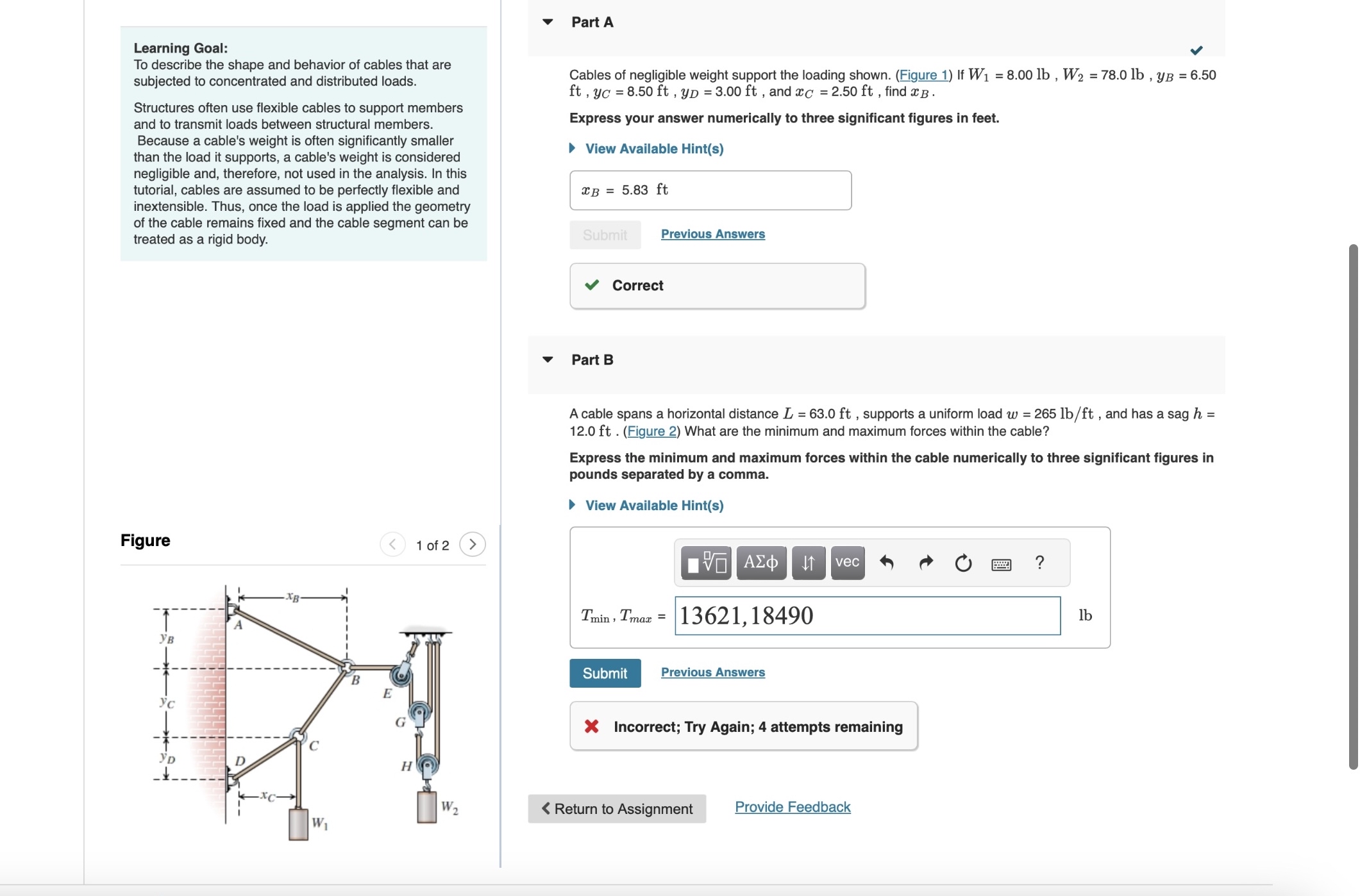

Please help part B $!!!$ Answer it correctly $!!!!$Learning Goal:

To describe the shape and behavior of cables that are subjected to concentrated and distributed loads.

Structures often use flexible cables to support members and to transmit loads between structural members. Because a cable's weight is often significantly smaller than the load it supports, a cable's weight is considered negligible and, therefore, not used in the analysis. In this tutorial, cables are assumed to be perfectly flexible and inextensible. Thus, once the load is applied the geometry of the cable remains fixed and the cable segment can be treated as a rigid body.

Figure

$1$ of $2$

Part A

Cables of negligible weight support the loading shown. $($Figure $1)$ If $W_1=8\mathrm{.}00lb,W_2=78\mathrm{.}0lb,y_B=6\mathrm{.}50ft,y_C=8\mathrm{.}50ft,y_D=3\mathrm{.}00ft,$ and $x_C=2\mathrm{.}50ft,$ find $x_B.$

Express your answer numerically to three significant figures in feet.

View Available Hint$($s$)$

Previous Answers

Correct

Part B

A cable spans a horizontal distance $L=63\mathrm{.}0ft,$ supports a uniform load $w=265l\frac{b}{f}t,$ and has a sag $h=12\mathrm{.}0ft.($Figure $2)$ What are the minimum and maximum forces within the cable?

Express the minimum and maximum forces within the cable numerically to three significant figures in pounds separated by a comma.

View Available Hint$($s$)$

$T_{\text{m}\text{i}\text{n}},T_{\text{m}\text{a}\text{x}}=$

$lb$

Incorrect; Try Again; $4$ attempts remaining
