Question: please help with the graph network how do I end E and F together or no? NETWORK: PERT 2 Consider the following table: ACTIVITY PREC.

please help with the graph network how do I end E

please help with the graph network how do I end E and F together or no?

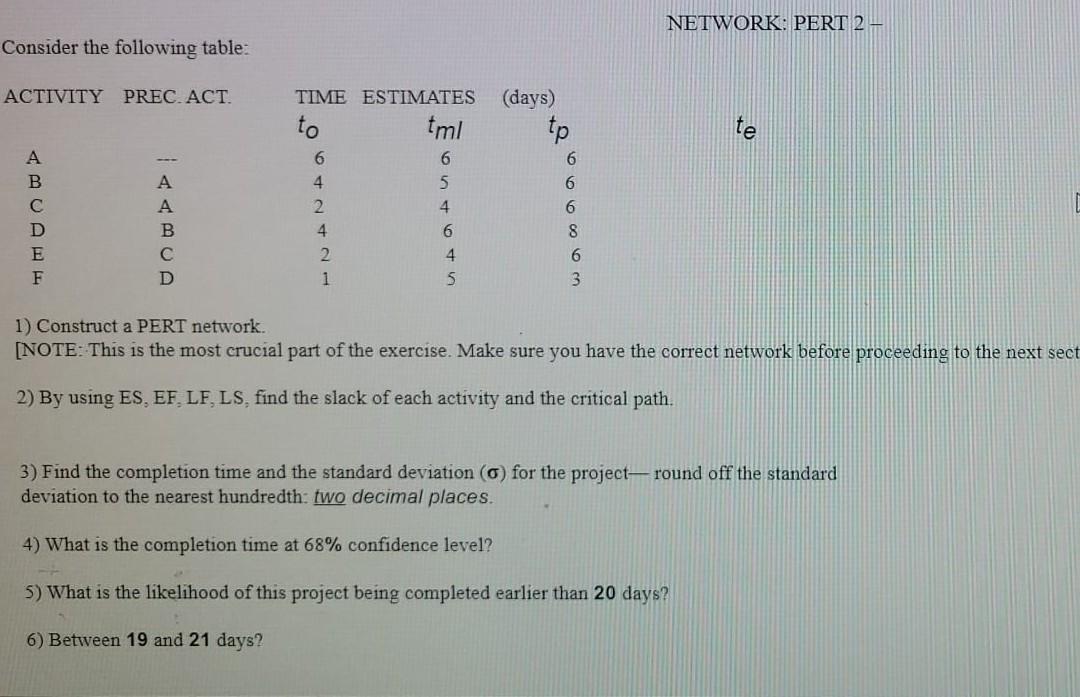

NETWORK: PERT 2 Consider the following table: ACTIVITY PREC. ACT. tml (days) tp 6 te 6 TIME ESTIMATES to 6 6 4 5 2. 4 4 6 2. 4 1 5 B D E F 6 A B D 8 6 3 1) Construct a PERT network. [NOTE: This is the most crucial part of the exercise. Make sure you have the correct network before proceeding to the next sect 2) By using ES, EF. LF, LS, find the slack of each activity and the critical path. 3) Find the completion time and the standard deviation () for the project- round off the standard deviation to the nearest hundredth: two decimal places. 4) What is the completion time at 68% confidence level? 5) What is the likelihood of this project being completed earlier than 20 days? 6) Between 19 and 21 days

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
