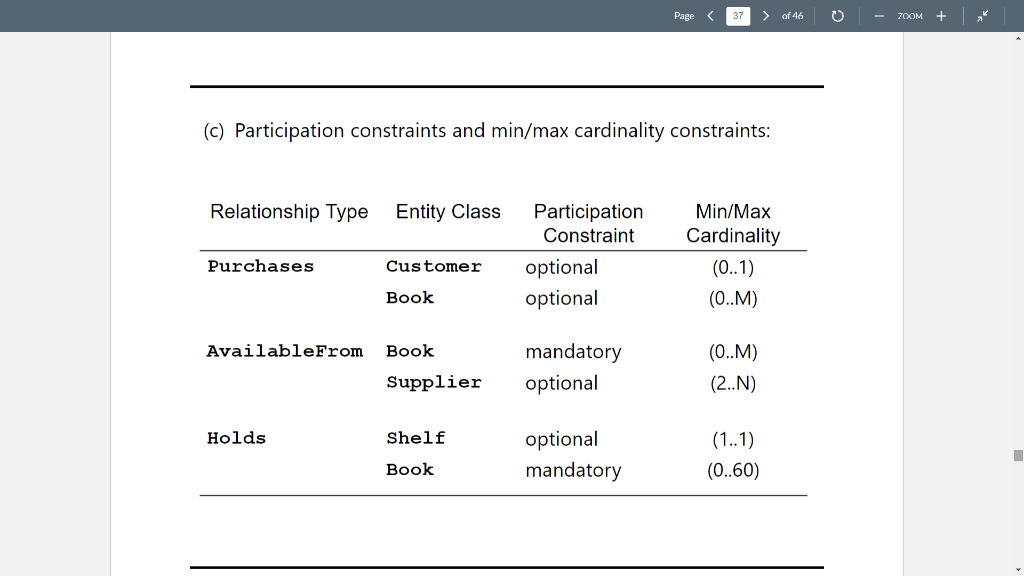

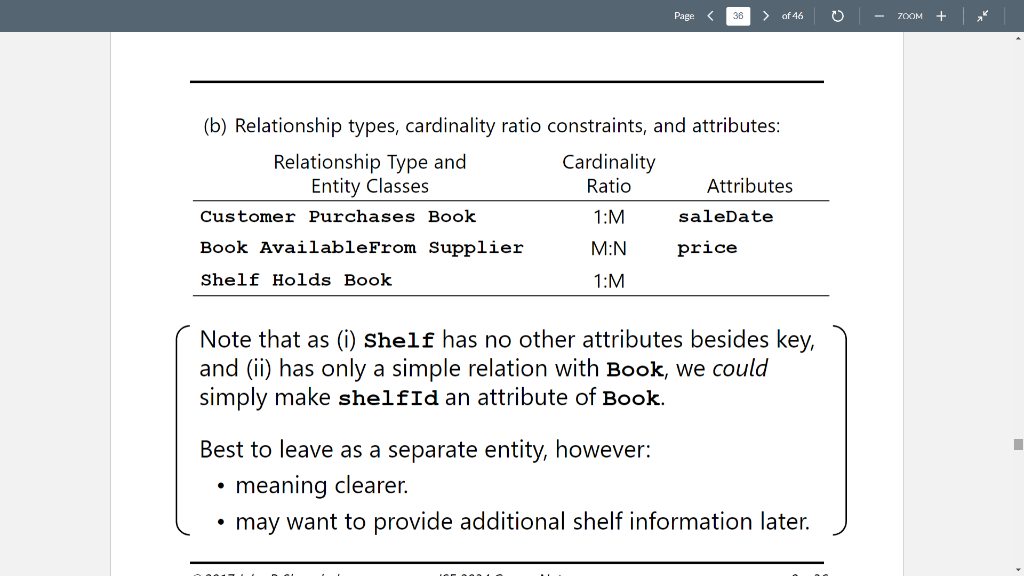

Please help with this question. for your reference on how to create the table please see the bottom screenshot and create the table in the same way. thank you.

You are working in a facility that produces make-to-stock items. Each product is made via

a series of operations, each at a different machine. Machines are run by workers. Each

product is identified by a unique number, and has a 10-character name. Every operation

has a different number, as well as a type identifier (e.g., milling operation). Each machine

has a number and is in a particular department: the number and department together

identify the machine. Every worker is identified by an employee number: the employees

name (first and last) and a single phone # MUST also be available.

Additionally, you find that

- each product requires between 1-6 operations: each operation is for a particular product.

- each operation is done at a particular machine, which is dedicated to that operation

only. Some machines, however, are not used for the current products.

- ten workers run the machines. Each worker can operate one or more machines.

Some machines are fully automated, however, and hence dont require any workers.

Develop a conceptual schema for the above scenario. Specify your schema via

three tables , like in your notes (Chapter 8).

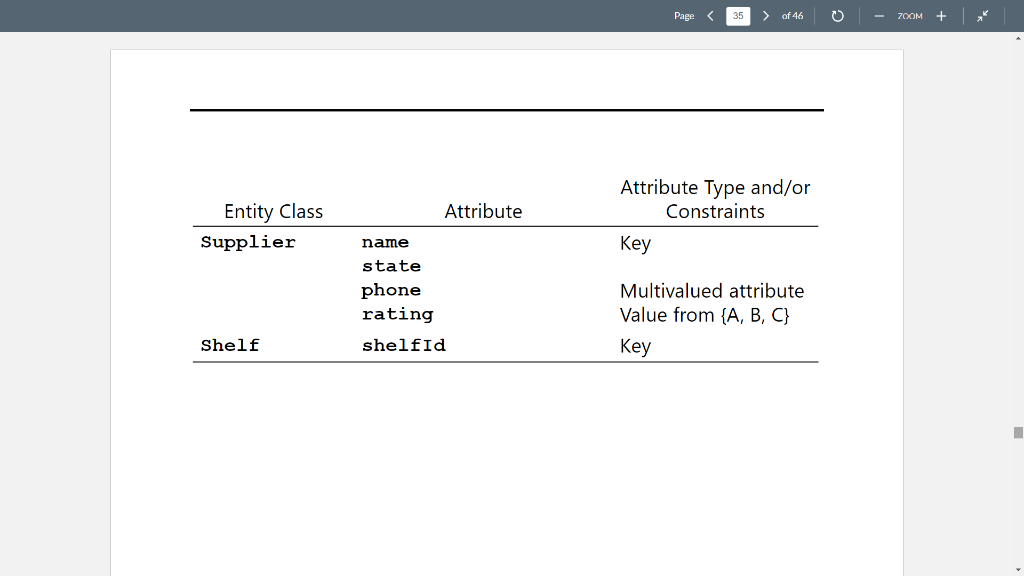

Page 5 of 46 - 700M + L Attribute Entity Class Supplier Attribute Type and/or Constraints Key name state phone rating shelfid Multivalued attribute Value from {A, B, C) Key Shelf 1 Page
