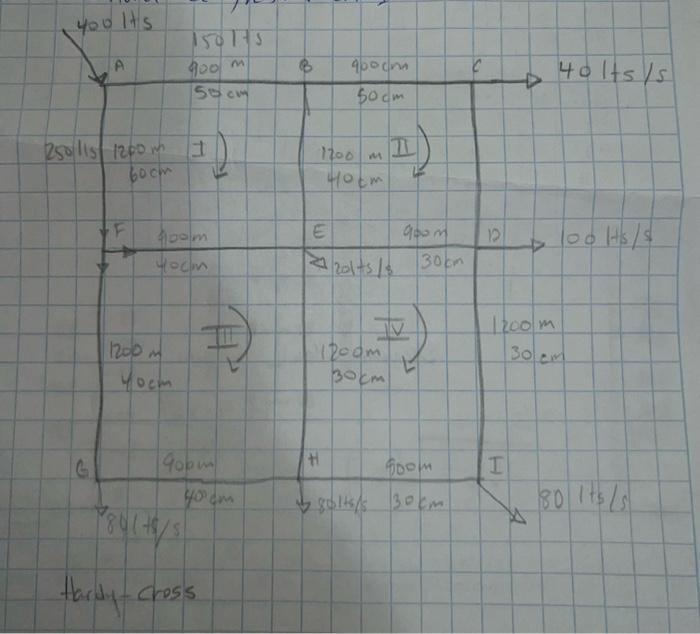

Question: Please show all solving steps and complete the problem fully. 1.Water flows through the pipe support shown, in which some flow rates are known. At

Please show all solving steps and complete the problem fully.

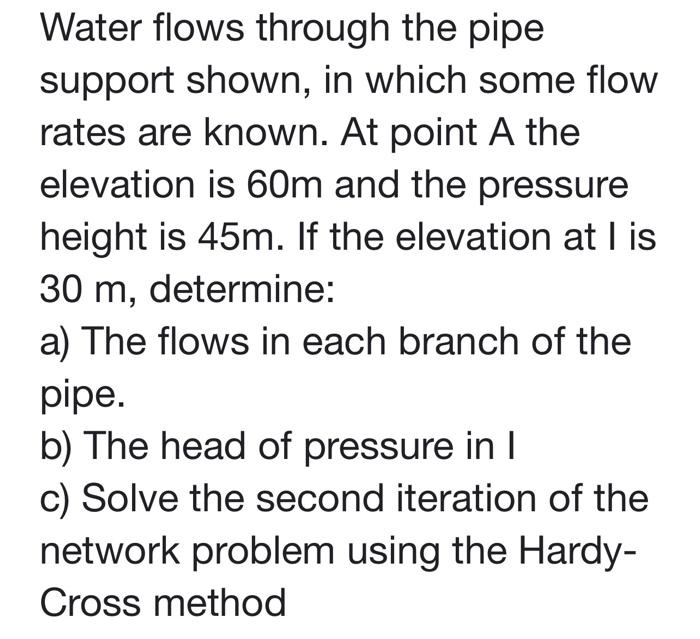

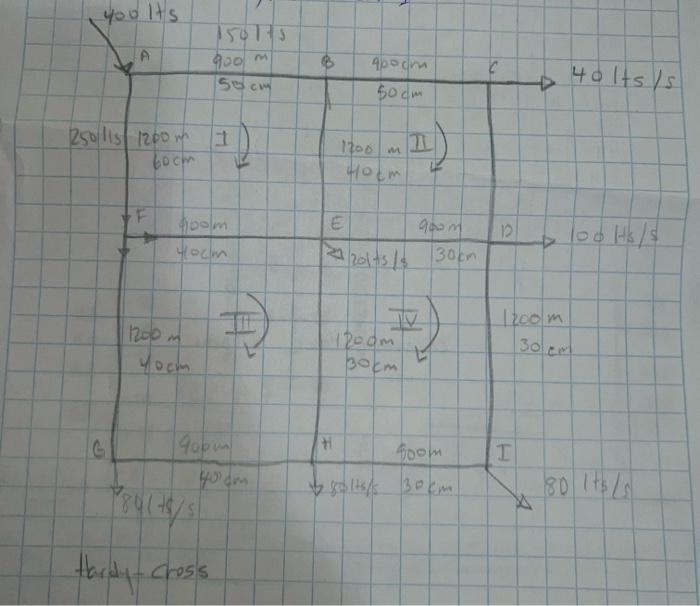

1.Water flows through the pipe support shown, in which some flow rates are known. At point A the elevation is 60m and the pressure height is 45m. If the elevation at I is 30 m, determine: a) The flows in each branch of the pipe. b) The head of pressure in I c) Solve the second iteration of the network problem using the Hardy-Cross method

Please show all solving steps and complete the problem fully. 1.Water

Please solve completely and show all steps.

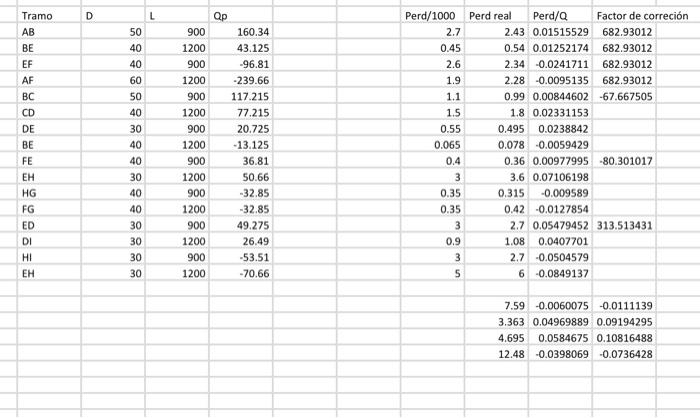

I have attached the second iteration which can be wrong but can be compared.

flows through the pipe support shown, in which some flow rates are

is 45m. If the elevation at I is 30 m, determine: a)

thardy-cress Water flows through the pipe support shown, in which some flow rates are known. At point A the elevation is 60m and the pressure height is 45m. If the elevation at I is 30m, determine: a) The flows in each branch of the pipe. b) The head of pressure in I c) Solve the second iteration of the network problem using the HardyCross method thardy-cross
