PLEASE SHOW ALL WORK

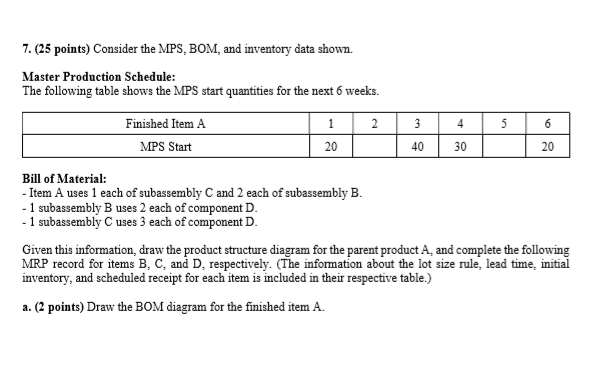

7. (25 points) Consider the MPS, BOM, and inventory data shown. Master Production Schedule: The following table shows the MPS start quantities for the next 6 weeks. Finished Item A 1 2 MPS Start 20 3 4 5 6 40 30 20 Bill of Material: - Item A uses 1 each of subassembly C and 2 each of subassembly B. - 1 subassembly B uses 2 each of component D. - 1 subassembly C uses 3 each of component D. Given this information, draw the product structure diagram for the parent product A, and complete the following MRP record for items B, C, and D, respectively. The information about the lot size rule, lead time, initial inventory, and scheduled receipt for each item is included in their respective table.) a. (2 points) Draw the BOM diagram for the finished item A
