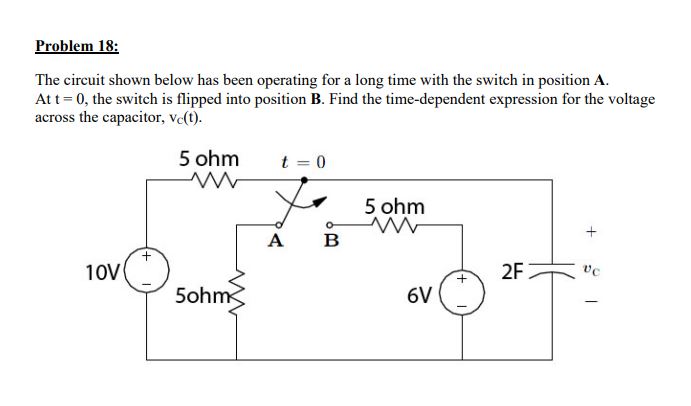

Problem 18:
The circuit shown below has been operating for a long time with the switch in position \(\mathbf{A}\). At \(\mathrm{t}=0\), the switch is flipped into position B. Find the time-dependent expression for the voltage across the capacitor, \(\mathrm{v}_{\mathrm{C}}(\mathrm{t})\).
