Question: Estimate the Slab reinforcement for the given figure below. All the straight bottom bars are 10mm@400mm c/c. All offset bars 12mm@400mm c/c, All Additional

Estimate the Slab reinforcement for the given figure below. All the straight

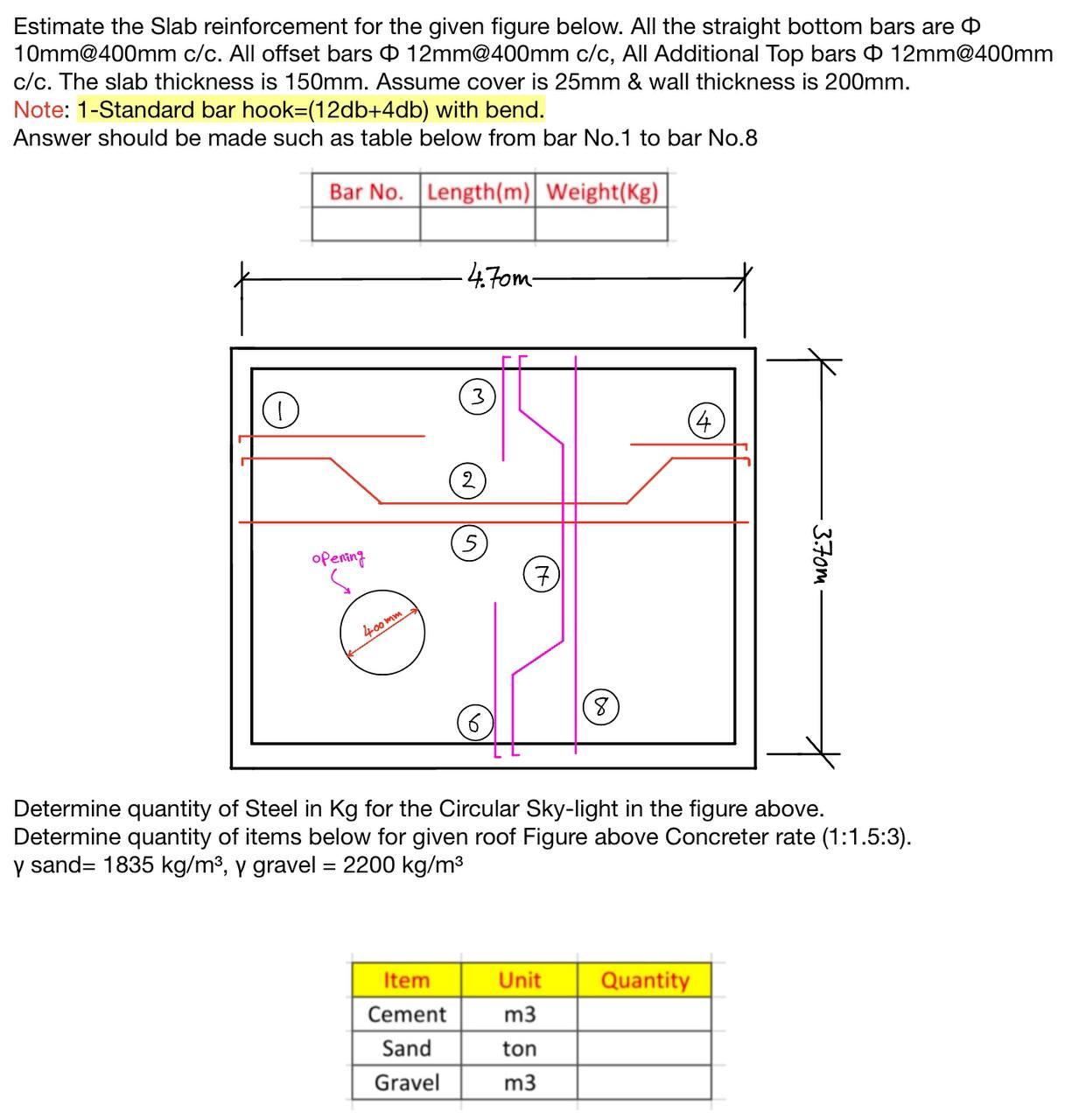

Estimate the Slab reinforcement for the given figure below. All the straight bottom bars are 10mm@400mm c/c. All offset bars 12mm@400mm c/c, All Additional Top bars c/c. The slab thickness is 150mm. Assume cover is 25mm & wall thickness is 200mm. Note: 1-Standard bar hook-(12db+4db) with bend. Answer should be made such as table below from bar No.1 to bar No.8 Bar No. Length (m) Weight(Kg) -4.70m- 2 opening (7) (4) 3.70m 12mm@400mm 400mm 8 6 Determine quantity of Steel in Kg for the Circular Sky-light in the figure above. Determine quantity of items below for given roof Figure above Concreter rate (1:1.5:3). y sand= 1835 kg/m, y gravel = 2200 kg/m Item Unit Quantity Cement m3 Sand ton Gravel m3

Step by Step Solution

★★★★★

3.41 Rating (151 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Step 1 Total volume of slab49390150154042 28477 m3 Ratio of concrete 1153 Sum o... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
