Question: Please try to solve this problem as early as possible Consider the following 8051 interfacing problem. (1+1+1+1+1] +5V 8051 ADC0804 Voc P2.5 P2.6 RD WR

Please try to solve this problem as early as possible

Please try to solve this problem as early as possible Consider the

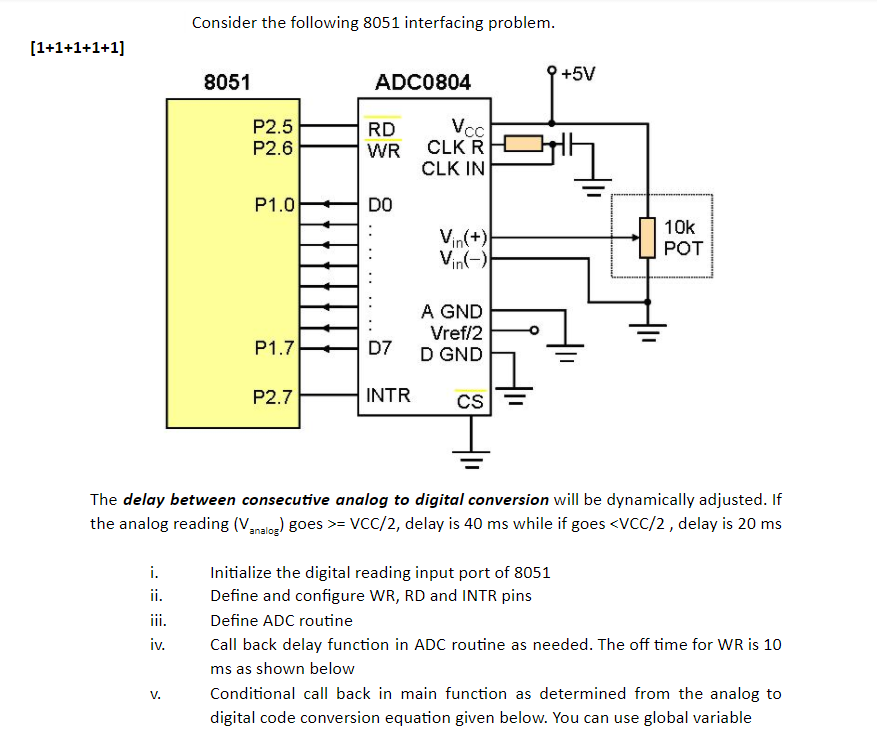

Consider the following 8051 interfacing problem. (1+1+1+1+1] +5V 8051 ADC0804 Voc P2.5 P2.6 RD WR CLKR CLK IN P1.0 DO Vin(+) Vin(-) 10k POT A GND Vref/2 D GND P1.7 D7 P2.7 INTR CS I The delay between consecutive analog to digital conversion will be dynamically adjusted. If the analog reading (Vanalog) goes >= VCC/2, delay is 40 ms while if goes

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

(b) Consider the following 8051 interfacing problem. 8051 ADC0804 [1+1+1+1+1) +5V Vee P2.5 P2.6 RD WR CLKR CLK IN P1.01 DO 10k POT V. A GND Vref/2 D GND P1.7 D7 P2.7 INTR CS The delay between...

[1+1+1+1+1] (b) Consider the following 8051 interfacing problem. 8051 ADC0804 +5V RD Voc P2.5 P2.6 WR CLKR CLK IN Sl? P1.0 DO 10k POT A GND Vref/2 D GND P1.7 D7 P2.7 INTR CS The delay between...

Hints: -function to create required delay void delay(unsigned intmsec ) // Delay function { inti,j ; for(i=0;i for(j=0; j } - Equation to derive analog value read V analog = ADC code *LSB in decimal...

Microprocessor Interfacing & Embedded System please answer quickly. (b) Consider the following 8051 interfacing problem. 8051 ADC0804 9 +5V P2.5 P2.6 RD WR Vcc CLKR CLK IN P1.0 DO : Vin(+) Vin() 10k...

(b) Consider the following 8051 interfacing problem. The delay between consecutive analog to digital conversion will be dynamically adjusted. If the analog reading (V analog ) goes >= VCC/2, delay is...

(1+1+1+1+1] (b) Consider the following 8051 interfacing problem. 8051 ADC0804 +5V Voc P2.5 P2.6 RD WR CLK D CLK IN P1.0 DO Vin(+) Vin() 10k POT A GND Vref/2 D GND P1.7 D7 P2.7 INTR CS The delay...

[1+1+1+1+1] (b) Consider the following 8051 interfacing problem. 8051 ADC0804 +5V P2.5 P2.6 RD WR VCC CLKR CLK IN at P1.0 DO Vin(+) 10k POT Vin(-). A GND Vref/2 D GND P1.7 D7 P2.7 INTR CS The delay...

Before Solving this problem, please go through all the requirements. It's my kind request to you. I added sample questions and sample answers for your better understanding. from all of them, here is...

Subject - Computer Organization and Architecture [ Theory ] Before Solving this problem, please go through all the requirements. It's my kind request to you. I added sample questions and answers for...
