Question: Problem 0 6 . 1 5 4 - The backhoe bucket The action of the backhoe bucket is controlled by the three hydraulic cylinders shown.

Problem 06.154- The backhoe bucket

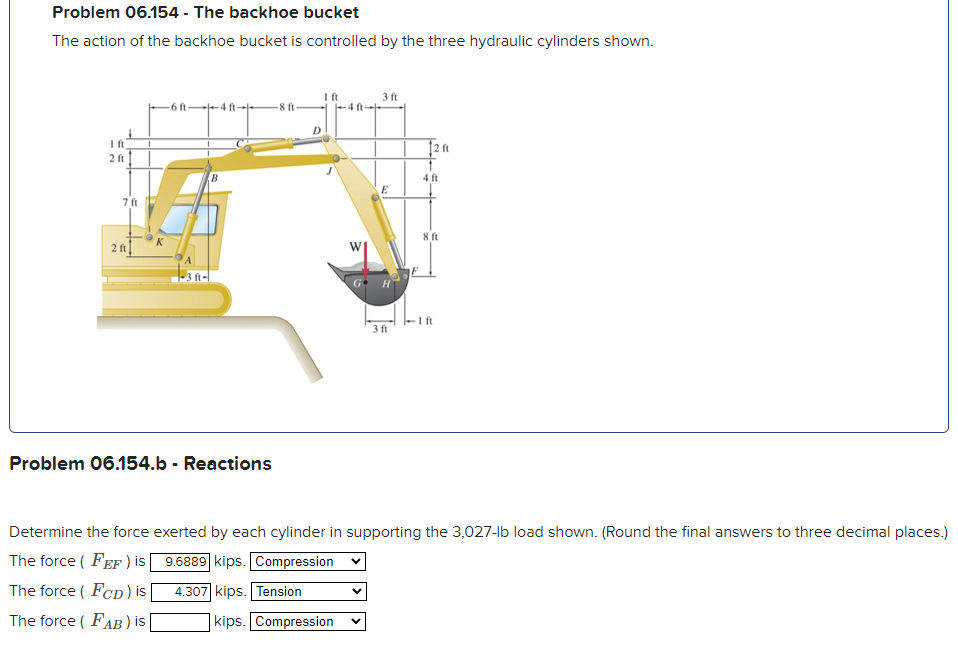

The action of the backhoe bucket is controlled by the three hydraulic cylinders shown.
Problem 06.154.b - Reactions
Determine the force exerted by each cylinder in supporting the 3,027-lb load shown. (Round the final answers to three decimal places.)
The force (\( F_{E F}\)) is kips.
The force \(\left(F_{C D}\right)\) is
kips.
The force \(\left(F_{A B}\right)\) is
kips.
Problem 0 6 . 1 5 4 - The backhoe bucket The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
