Question: Problem 1 ( 3 3 Points ) For the system shown below, the mass M = 1 0 k g , find: a ) The

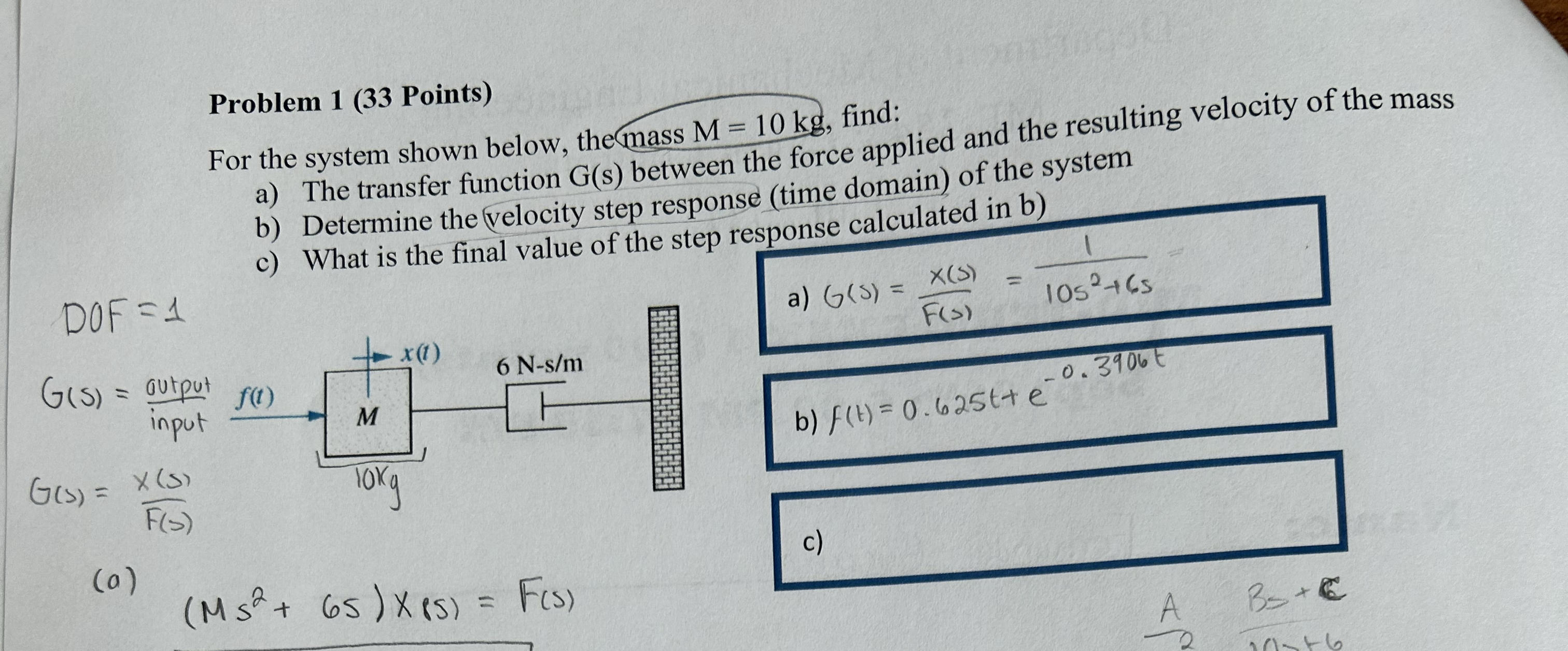

Problem 1(33 Points)
For the system shown below, the mass M=10kg, find:
a) The transfer function G(s) between the force applied and the resulting velocity of the mass
b) Determine the velocity step response (time domain) of the system
c) What is the final value of the step response calculated in b)
Problem 1 ( 3 3 Points ) For the system shown
