Question: Problem 1 3 . Analysis of a Cascade Control System for a Chemical Reactor A cascade control system for a continuous flow stirred reactor is

Problem 13. Analysis of a Cascade Control System for a Chemical Reactor

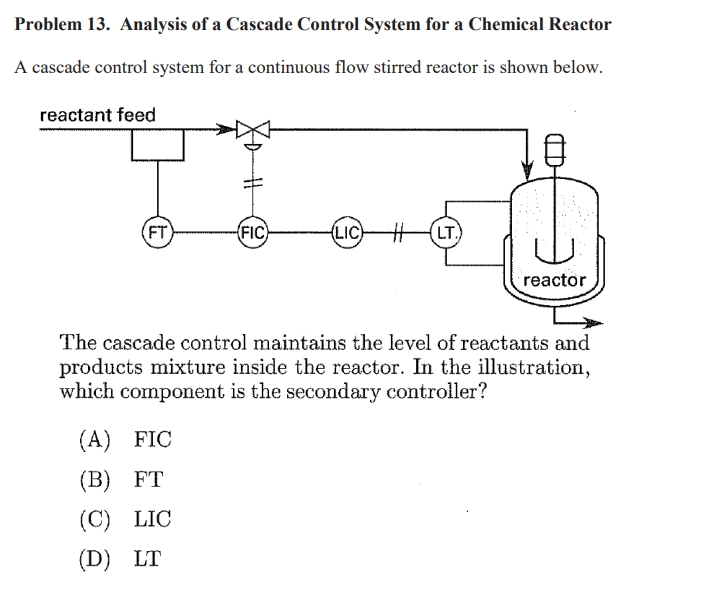

A cascade control system for a continuous flow stirred reactor is shown below.
The cascade control maintains the level of reactants and products mixture inside the reactor. In the illustration, which component is the secondary controller?
(A) FIC
(B)FT
(C) LIC
(D)LT
 Problem 13. Analysis of a Cascade Control System for a Chemical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
