Question: Problem 1 5 : The 1 . 2 m perpendicular depth tank wall is shown in the Figure. Determine the magnitude of the horizontal and

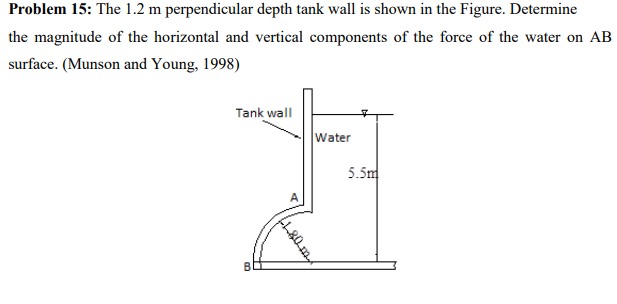

Problem 15: The 1.2m perpendicular depth tank wall is shown in the Figure. Determine
the magnitude of the horizontal and vertical components of the force of the water on AB
surface. (Munson and Young, 1998)
Problem 1 5 : The 1 . 2 m perpendicular depth

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
