Question: Problem 1. Concentrated load P. at B and difference AT(x) are applied to circular bar with Young's Modulus E and thermal expansion coefficient ar. The

Problem 1. Concentrated load P. at B and difference AT(x) are

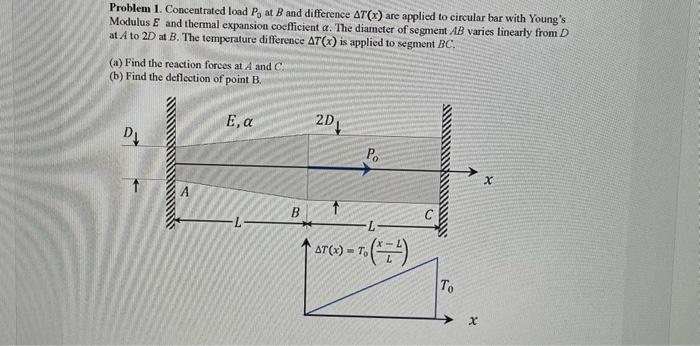

Problem 1. Concentrated load P. at B and difference AT(x) are applied to circular bar with Young's Modulus E and thermal expansion coefficient ar. The diameter of segment AB varies linearly from D at A to 2D at B. The temperature difference AT(x) is applied to segment BC. (a) Find the reaction forces at A and C. (b) Find the deflection of point B. E, a 2D DI Po A B C L AT (x) = To To

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
