Question: Problem 1 Determine the tension in cables B C , B D , D E , and D F to hold the 1 0 N

Problem 1

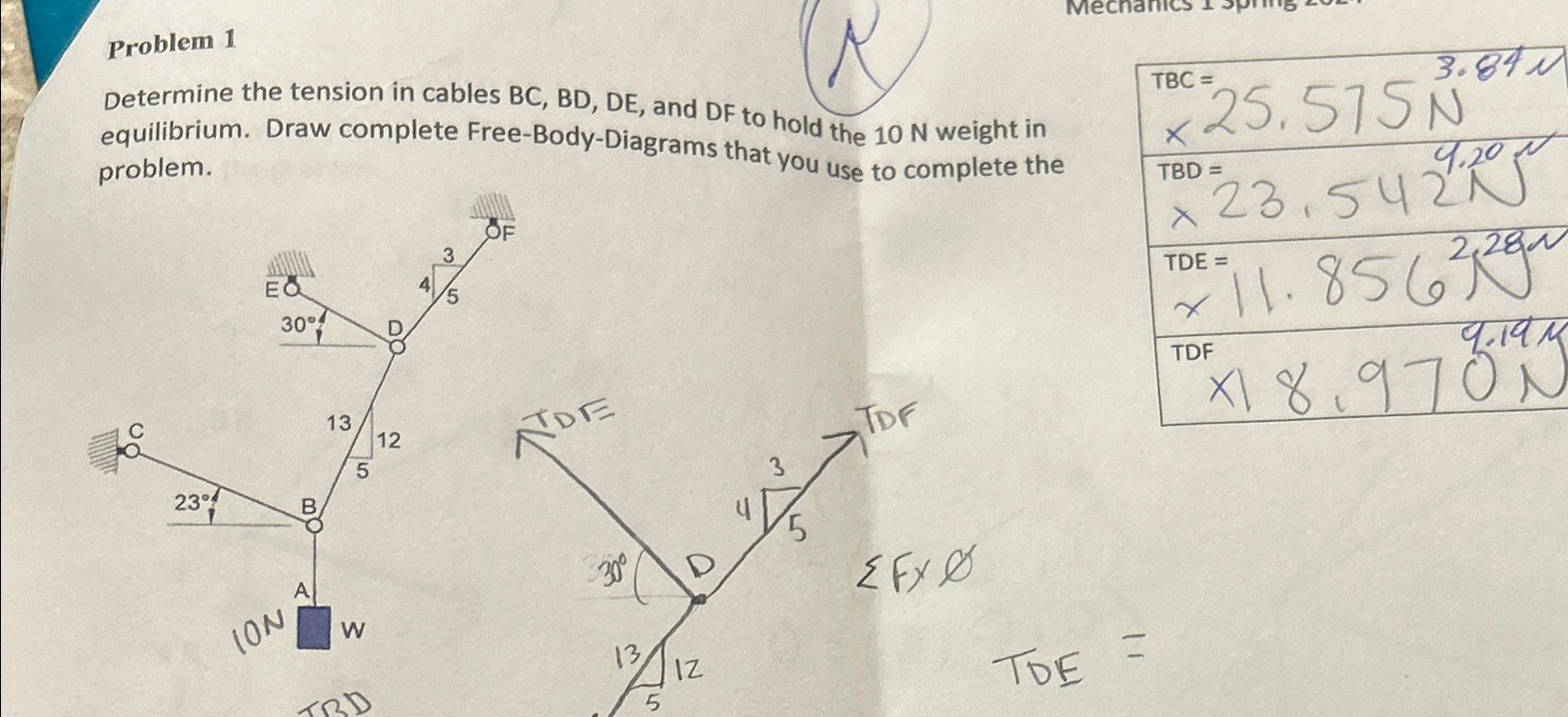

Determine the tension in cables BC,BD,DE, and DF to hold the 10N weight in equilibrium. Draw complete Free-Body-Diagrams that you the 10N weight in problem. problem
Problem 1 Determine the tension in cables B C , B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
