Question: Problem 1 For the beams shown below, complete the following tasks to plot the moment diagrams using the segment method: Identify the location of all

Problem 1

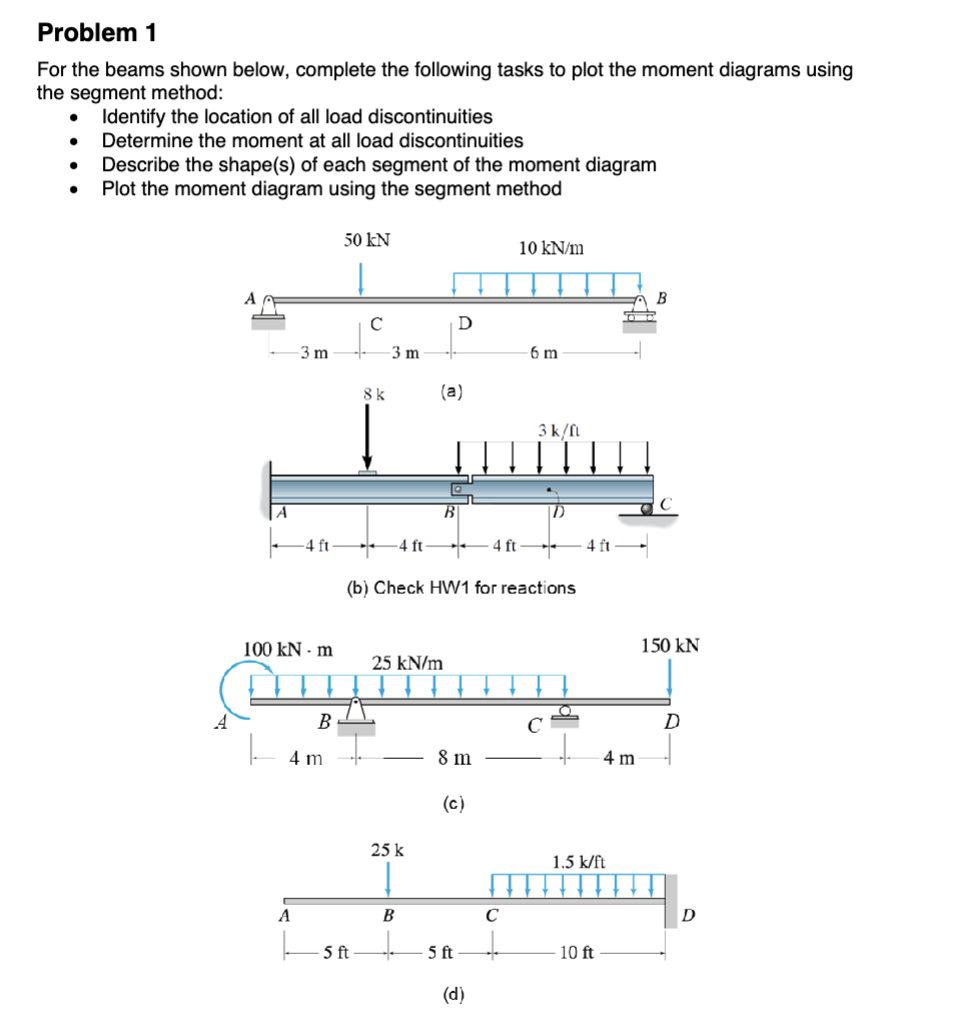

For the beams shown below, complete the following tasks to plot the moment diagrams using
the segment method:
Identify the location of all load discontinuities
Determine the moment at all load discontinuities
Describe the shape(s) of each segment of the moment diagram
Plot the moment diagram using the segment method
(c)
Problem 1 For the beams shown below, complete the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
