Question: Problem 1 . For the following thin - walled closed section: 1 . Determine the torsional rigidity. 2 . If the length of the beam

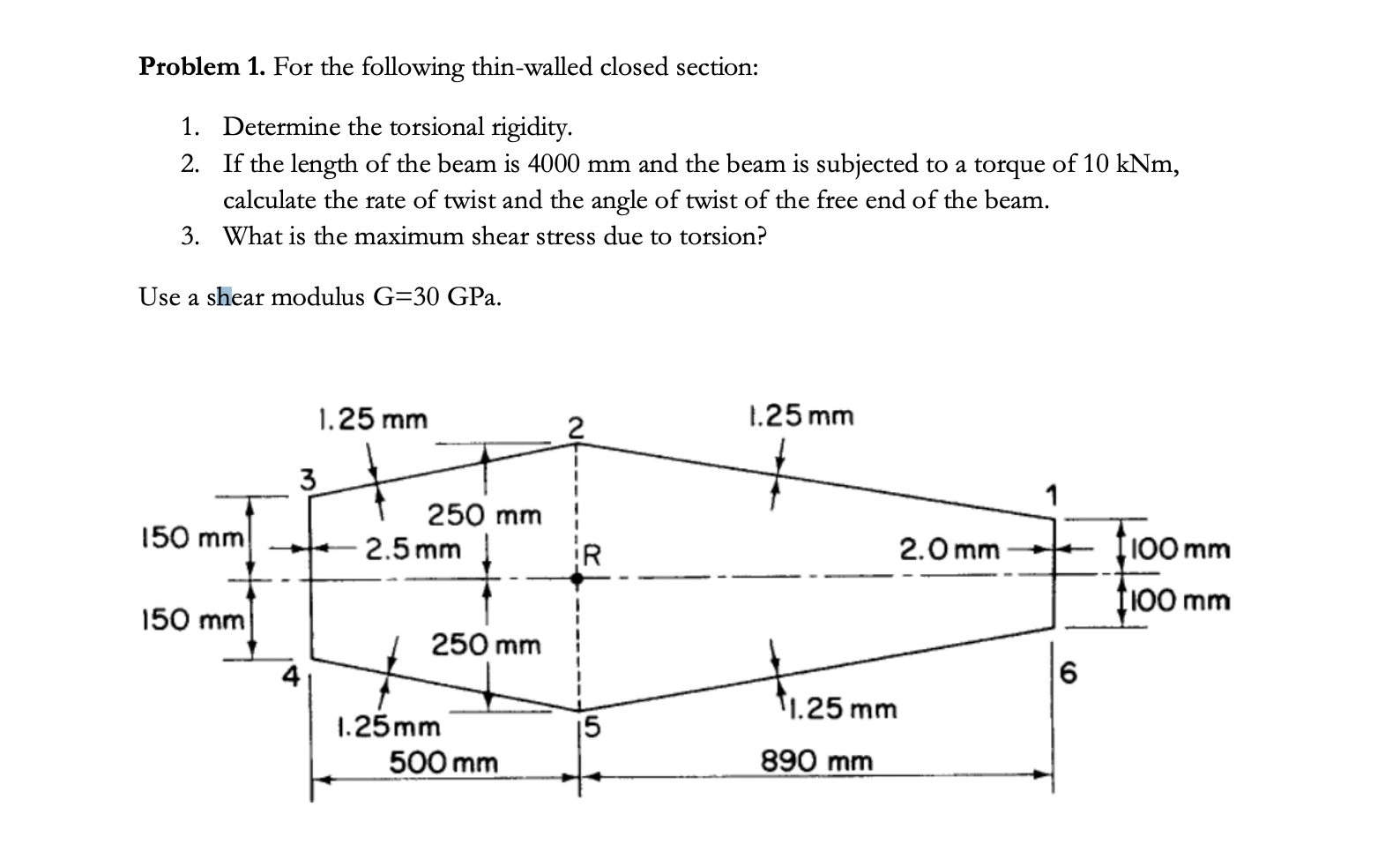

Problem 1. For the following thin-walled closed section:
1. Determine the torsional rigidity.
2. If the length of the beam is 4000 mm and the beam is subjected to a torque of 10 kNm , calculate the rate of twist and the angle of twist of the free end of the beam.
3. What is the maximum shear stress due to torsion?
Use a shear modulus \(\mathrm{G}=30\mathrm{GPa}\).
Problem 1 . For the following thin - walled

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
