Problem 1: Given the following code:

lw $t0, 0($s0)

lw $t1, 0($s1)

add $t0, $t0, $t1

sw $t0, 0($s0)

1. Identify all of the data dependencies in the code.

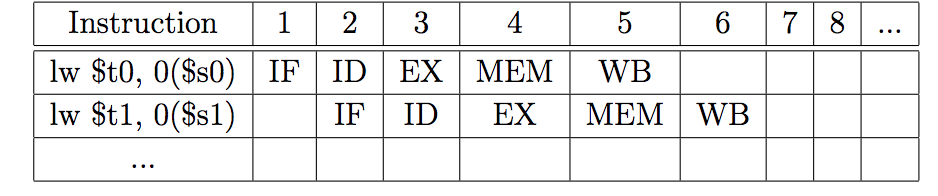

2. Execute the code on a pipelined computer by filling in the slots of a table similar to the following one, where each row represents an instruction and each column represents a clock cycle. Assuming forwarding is not available, insert stalls where they are necessary and calculate the total clock cycles.

3. Do 2. again, this time assuming forwarding is available.

Instruction 123 4 lw St1, 0($s1) | | IF | ID | EX | MEM | WB
