Question: Problem 1 : Note: Make sure to draw all diagrams. All Units must be included. Given: Three acting concurrent forces. Find: 1 ) The magnitude

Problem 1: Note: Make sure to draw all diagrams. All Units must be included. Given: Three acting concurrent forces.

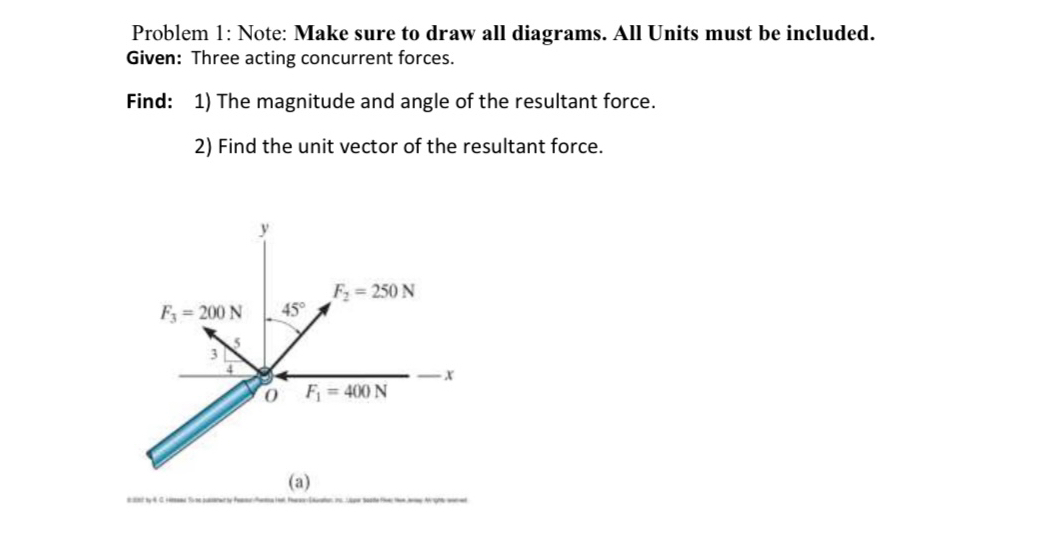

Find: 1) The magnitude and angle of the resultant force.
Find the unit vector of the resultant force.
Problem 1 : Note: Make sure to draw all diagrams.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
