Question: - Problem ( 1 ) Use the Force Method to: ( a ) Determine the support reaction, ( b ) Draw the shear force and

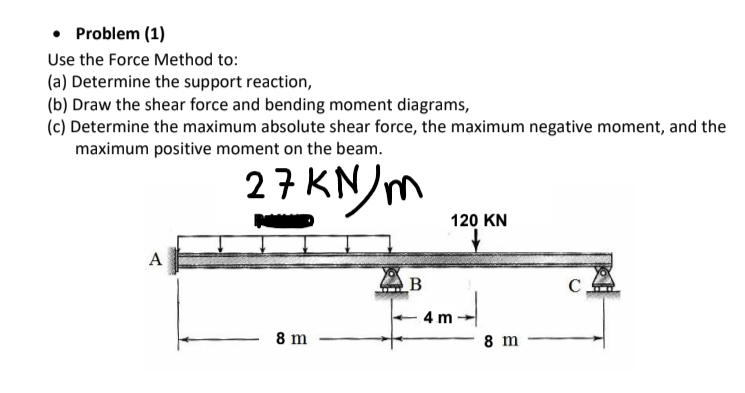

Problem
Use the Force Method to:
a Determine the support reaction,
b Draw the shear force and bending moment diagrams,
c Determine the maximum absolute shear force, the maximum negative moment, and the maximum positive moment on the beam.
