Question: Problem 1 : Using The node voltage method, write the equations needed to solve for the circuit. Using the variables defined in 1

Problem1:

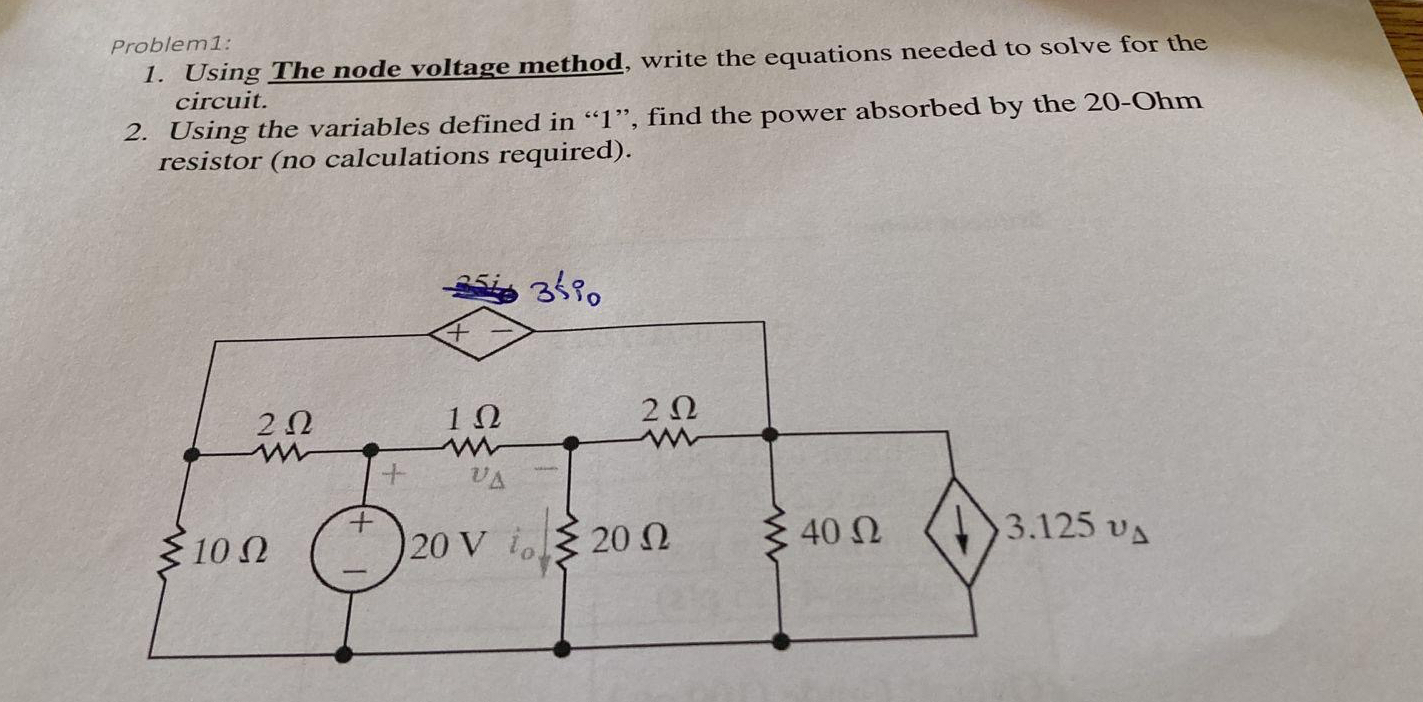

Using The node voltage method, write the equations needed to solve for the circuit.
Using the variables defined in "1", find the power absorbed by the 20-Ohm resistor (no calculations required).
Problem 1 : Using The node voltage method, write

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
