Question: Problem 2 ( 1 1 / 6 0 ) For the truss shown and assuming that all joints are pinned, a ) Calculate the reactions

Problem 2(11/60)

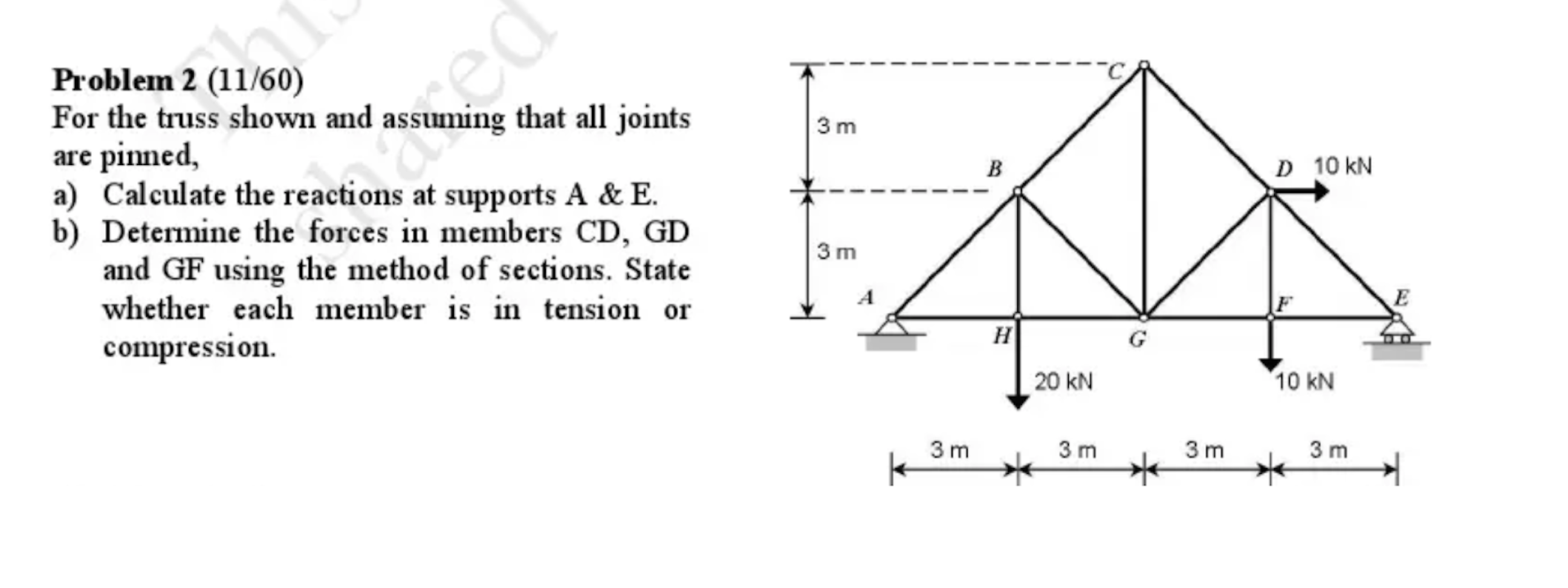

For the truss shown and assuming that all joints are pinned,
a) Calculate the reactions at supports A \& E.
b) Determine the forces in members CD , GD and GF using the method of sections. State whether each member is in tension or compression.
Problem 2 ( 1 1 / 6 0 ) For the truss shown and

Step by Step Solution

There are 3 Steps involved in it
