Question: Problem #2 (12 points) Construct Network from information in above table: a. Indicate Activity Number & Activity Duration b. Draw Arrows to indicate Precedent Relationships

Problem #2 (12 points) Construct Network from

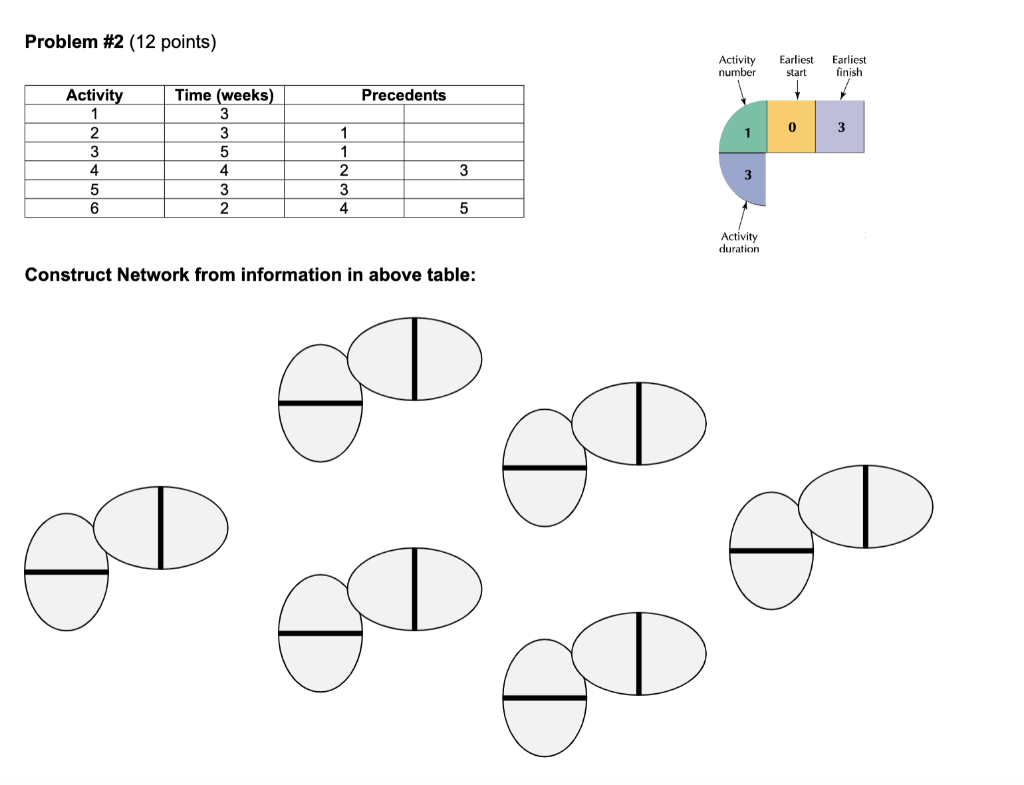

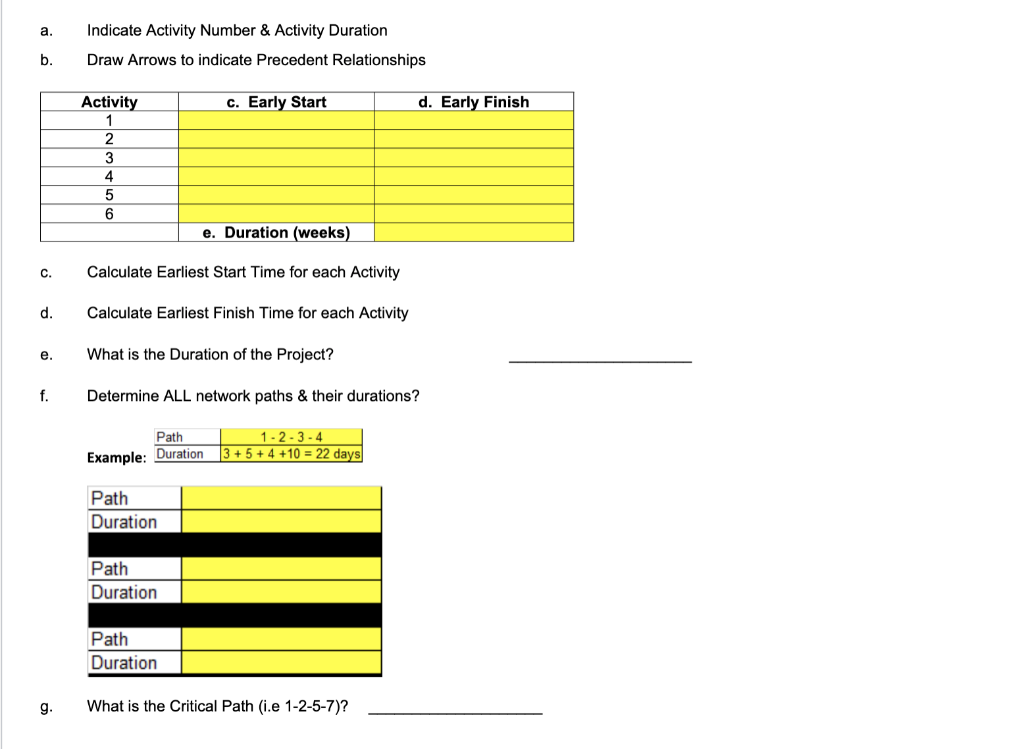

Problem #2 (12 points) Construct Network from information in above table: a. Indicate Activity Number \& Activity Duration b. Draw Arrows to indicate Precedent Relationships c. Calculate Earliest Start Time for each Activity d. Calculate Earliest Finish Time for each Activity e. What is the Duration of the Project? f. Determine ALL network paths \& their durations? Example: g. What is the Critical Path (i.e 1-2-5-7)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
