Question: Problem 2 ( 2 0 pts ) : For the truss shown below, determine the horizontal displacement at Node C by both SAP 2 0

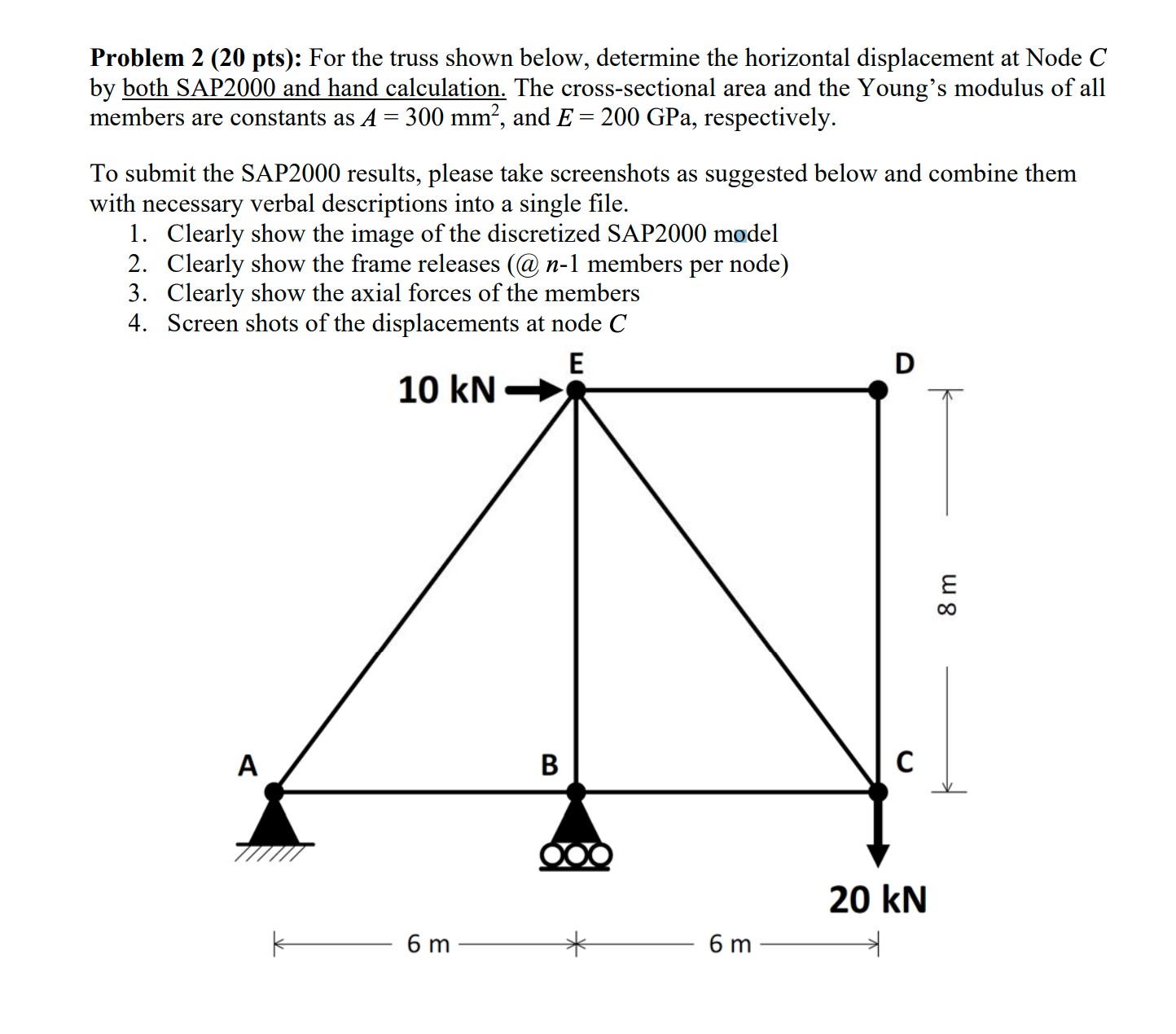

Problem 2(20 pts): For the truss shown below, determine the
horizontal displacement at Node C by both SAP2000 and hand calculation. The cross-sectional area and Young's modulus of all members are constants as A=300mm^(2) and E=200GPa,
solving by hand, I got 40 mm of horizontal displacement, which seems way too big. Can someone do it so I can see where I messed up no way 40 is right
Problem 2 ( 2 0 pts ) : For the truss shown
