Question: Problem 2 . Beam with uniform load and cantilever section. 4 7 . 0 k N ? ( a ) Draw the shear diagram and

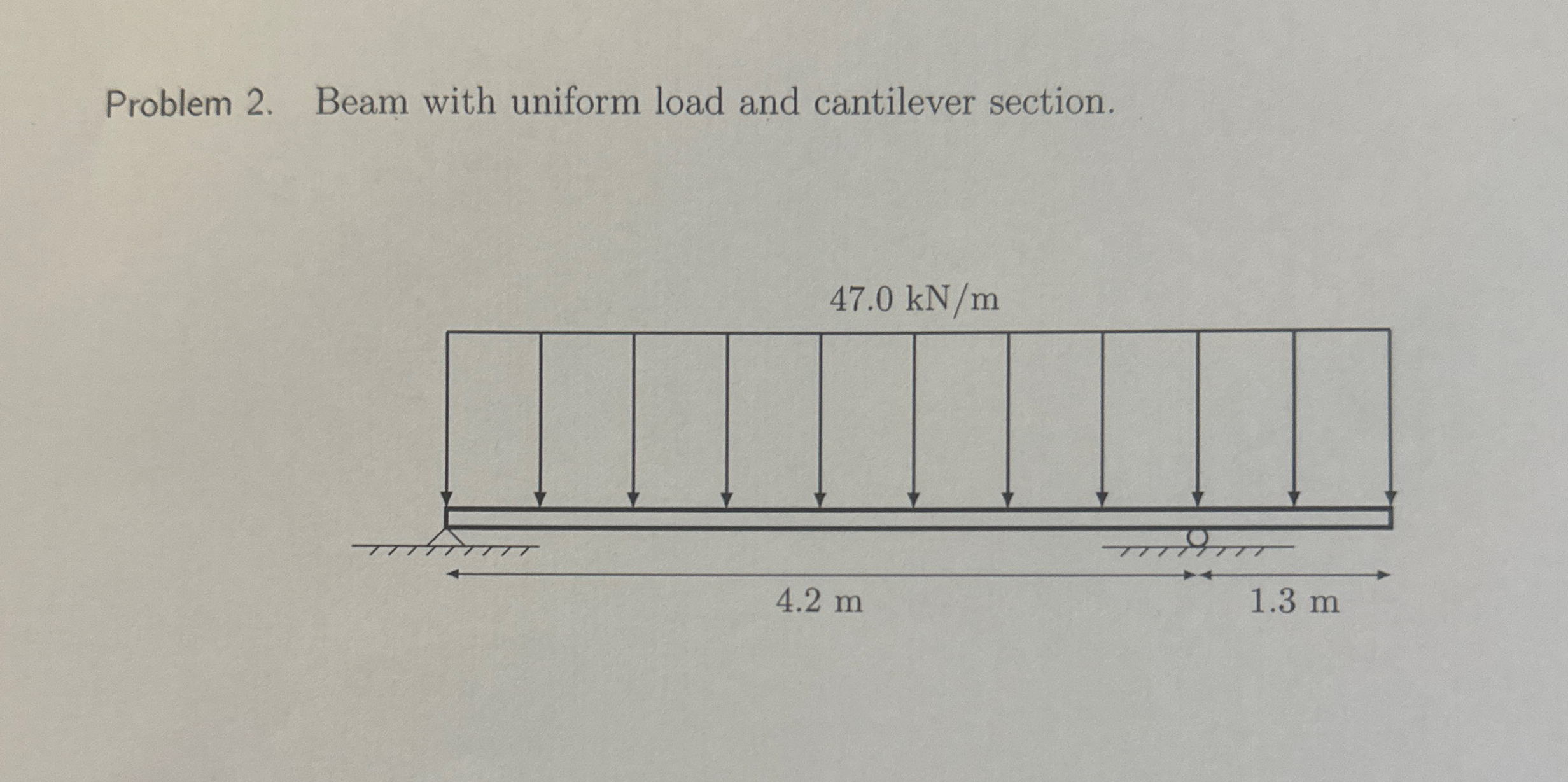

Problem 2. Beam with uniform load and cantilever section.
47.0kN?
(a) Draw the shear diagram and note the critical points
(b) Draw the moment diagram and show the locations of0 shear(maximumor minimum moment)
Problem 2 . Beam with uniform load and cantilever

Step by Step Solution

There are 3 Steps involved in it
