Question: Problem # 3 ( 1 1 marks ) 1 . Determine the reactions at the pin E and the roller ( A

Problem\# 3(11 marks)

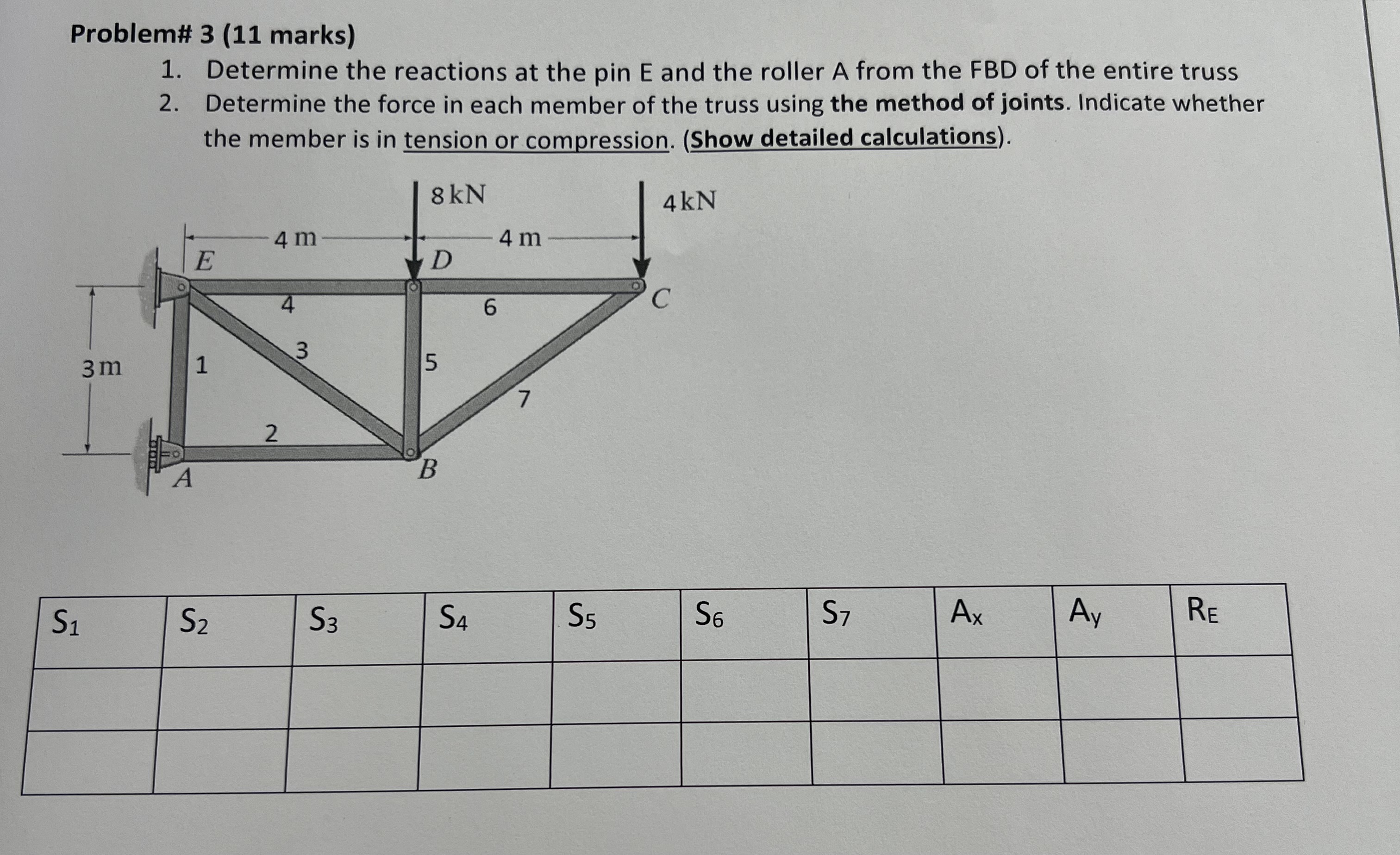

1. Determine the reactions at the pin E and the roller \( A \) from the FBD of the entire truss
2. Determine the force in each member of the truss using the method of joints. Indicate whether the member is in tension or compression. (Show detailed calculations).
Problem \ # 3 ( 1 1 marks ) 1 . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
