Question: Problem # 3 ( 2 0 points ) A flat - plate slab with spans of 2 5 f t in each direction is supported

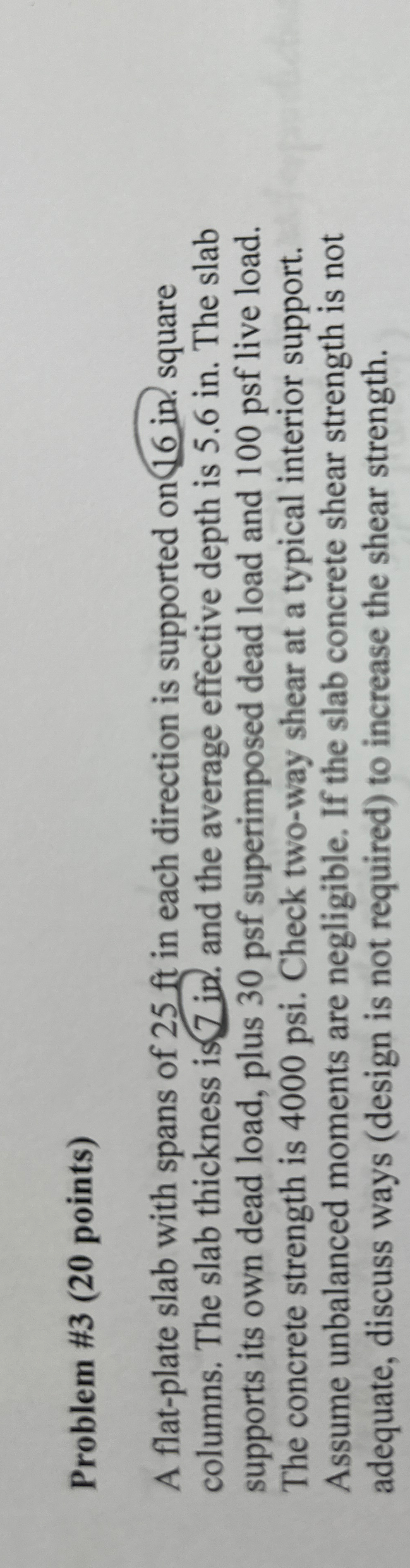

Problem #3(20 points)
A flat-plate slab with spans of 25ft in each direction is supported on 16 in. square columns. The slab thickness is 7 in. and the average effective depth is 5.6in. The slab supports its own dead load, plus 30 psf superimposed dead load and 100 psf live load. The concrete strength is 4000 psi. Check two-way shear at a typical interior support. Assume unbalanced moments are negligible. If the slab concrete shear strength is not adequate, discuss ways (design is not required) to increase the shear strength.
Problem # 3 ( 2 0 points ) A flat - plate slab
