Question: Problem 3 : A scissors jack for an automobile is shown below. The screw threads exert a force F on the blocks at joints A

Problem 3:

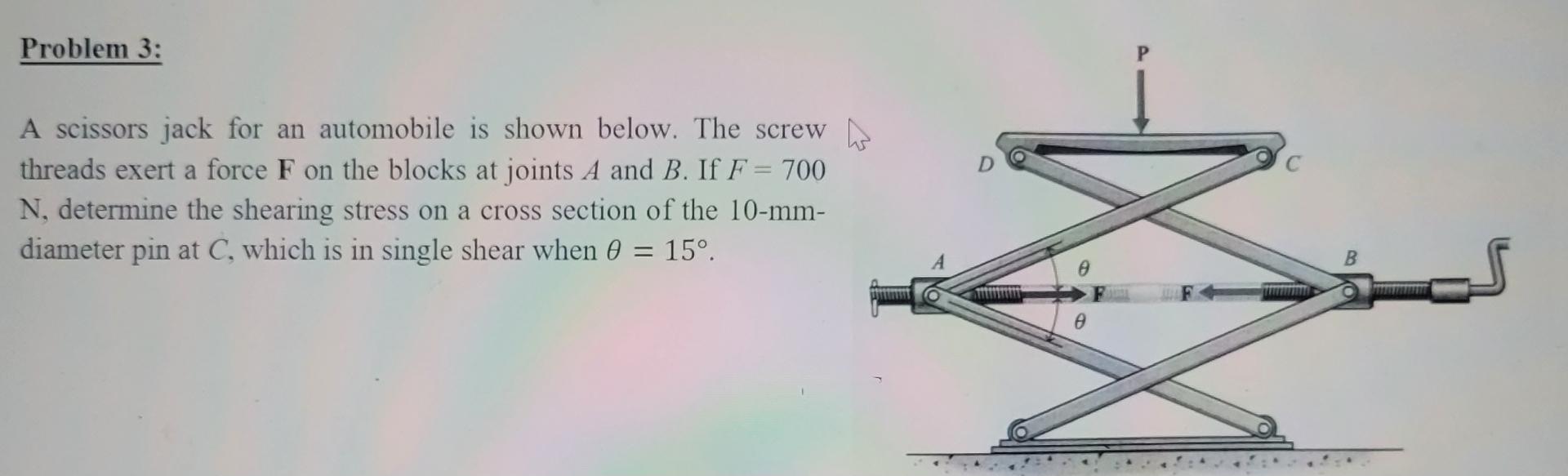

A scissors jack for an automobile is shown below. The screw threads exert a force F on the blocks at joints A and B. If F=700N, determine the shearing stress on a cross section of the 10-mm- diameter pin at C, which is in single shear when =15.
Problem 3: A scissors jack for an automobile is shown below.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

A scissors jack for an automobile is shown below. The screw threads exert a force F on the blocks at joints A and B. If F = 700 N, determine the shearing stress on a cross section of the 10-mm-...
