Question: Problem 3 . Bars ABC and DEF are solid bars with bars B E and C F pinned to them. Determine the forces in bars

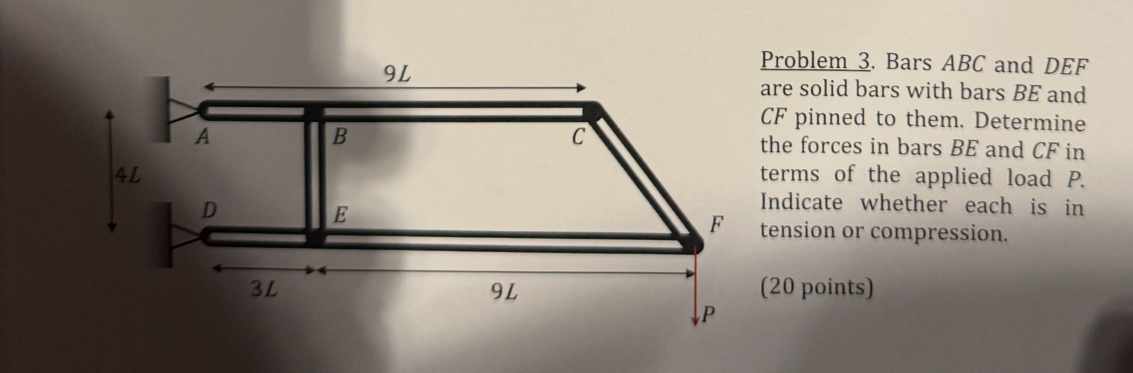

Problem 3. Bars ABC and DEF
are solid bars with bars BE and
CF pinned to them. Determine
the forces in bars BE and CF in
terms of the applied load P.
Indicate whether each is in
tension or compression.
(20 points)
Include free body diagram
Problem 3 . Bars ABC and DEF are solid bars with

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
