Question: Problem 3 Determine the geometric centroidal axis ' x ' and the moment of inertia about the centroidal axis. You have to find what x

Problem 3

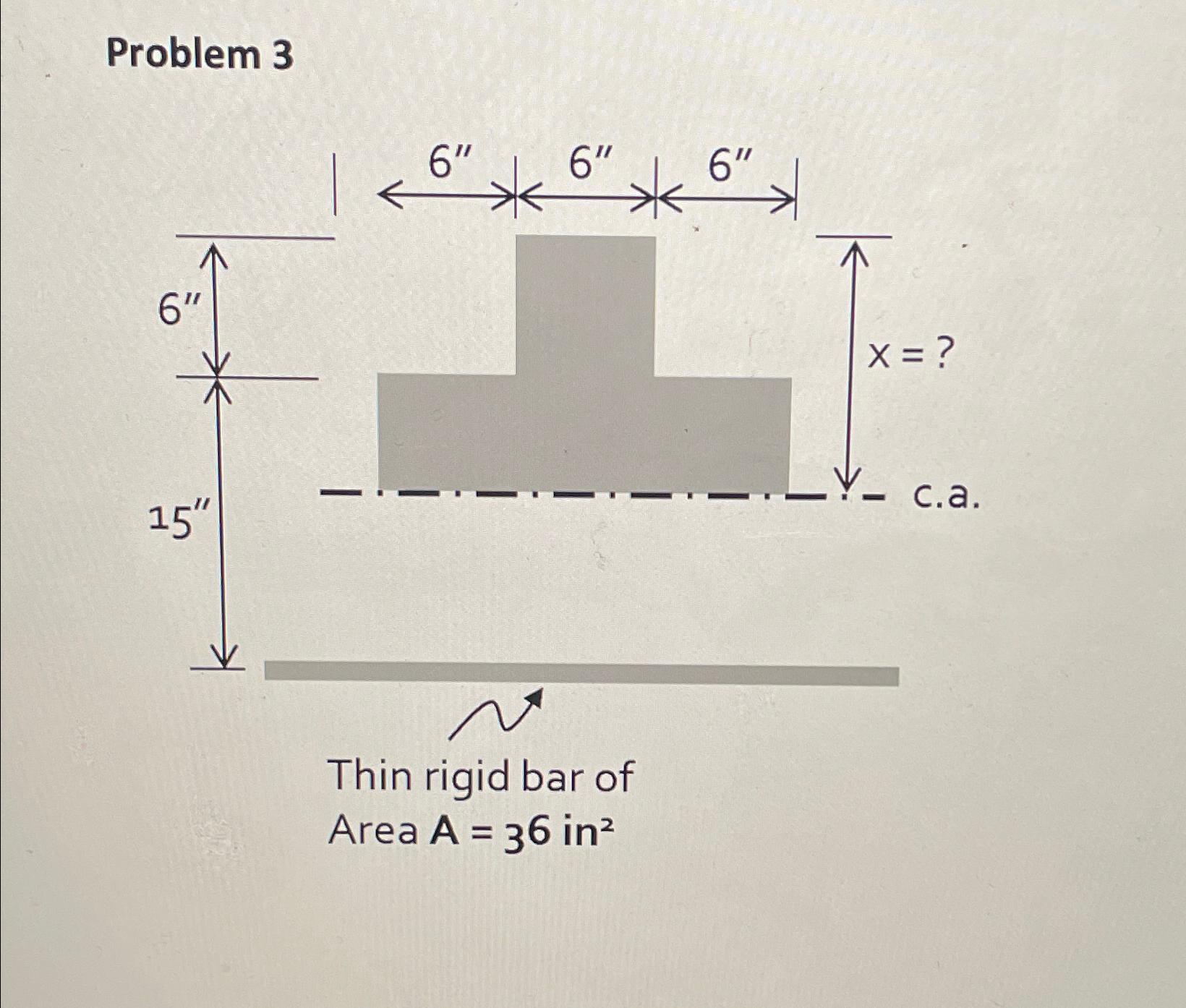

Determine the geometric centroidal axis 'x' and the moment of inertia about the centroidal axis. You have to find what x is before being able to find what the moment of inertia.
Problem 3 Determine the geometric centroidal axis

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
