Question: Problem 3 : Examine the circuit below: a ) Find the Thevenin equivalent circuit with respect to R L . b ) Convert the Thevenin

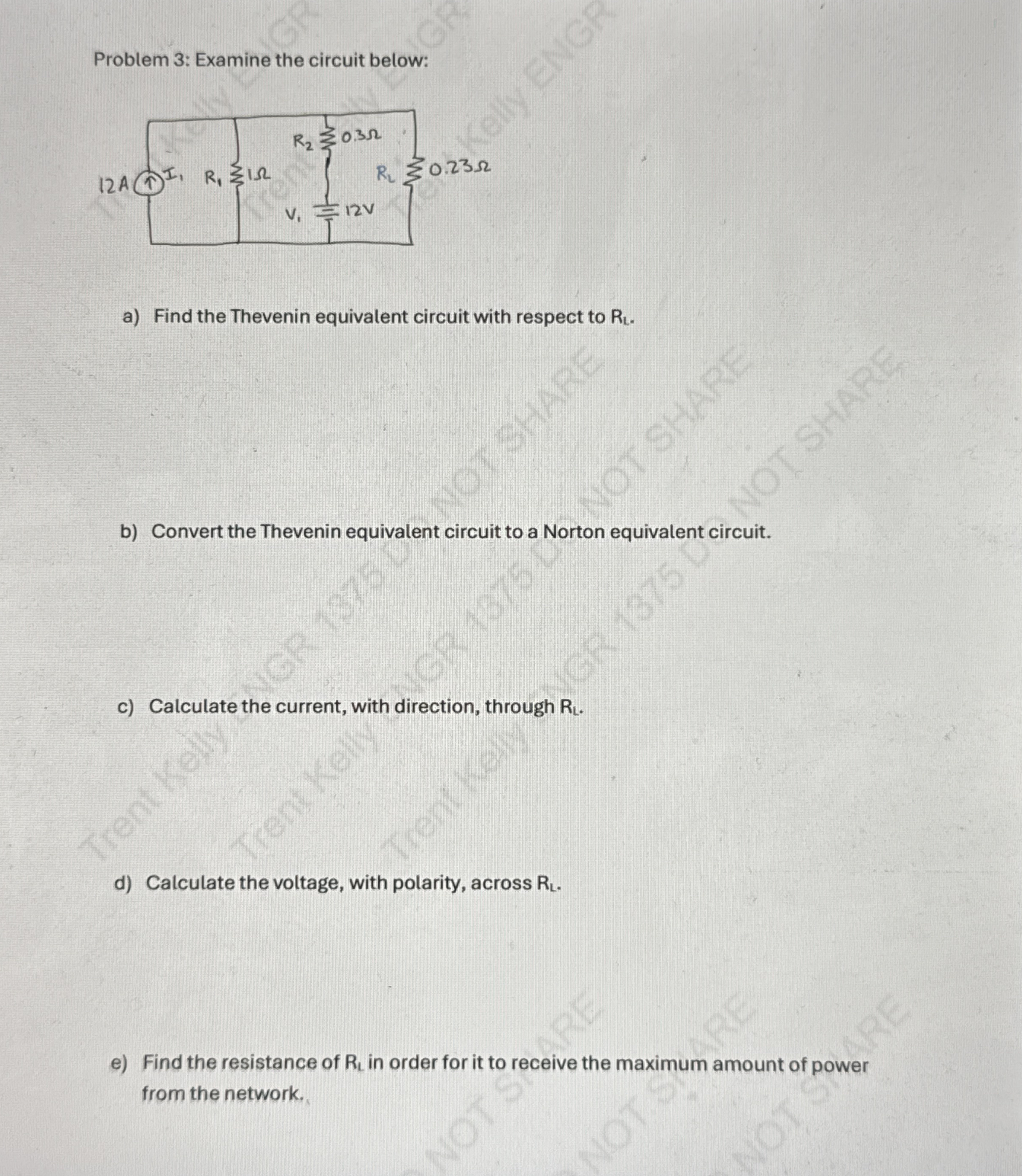

Problem 3: Examine the circuit below:
a) Find the Thevenin equivalent circuit with respect to RL.
b) Convert the Thevenin equivalent circuit to a Norton equivalent circuit.
c) Calculate the current, with direction, through RL.
d) Calculate the voltage, with polarity, across RL.
e) Find the resistance of RL in order for it to receive the maximum amount of power from the network.
Problem 3 : Examine the circuit below: a ) Find

Step by Step Solution

There are 3 Steps involved in it
