Question: Problem 3 Gate AB is 1 5 ft long and 8 ft wide into the paper, and is hinged at B with a stop at

Problem 3

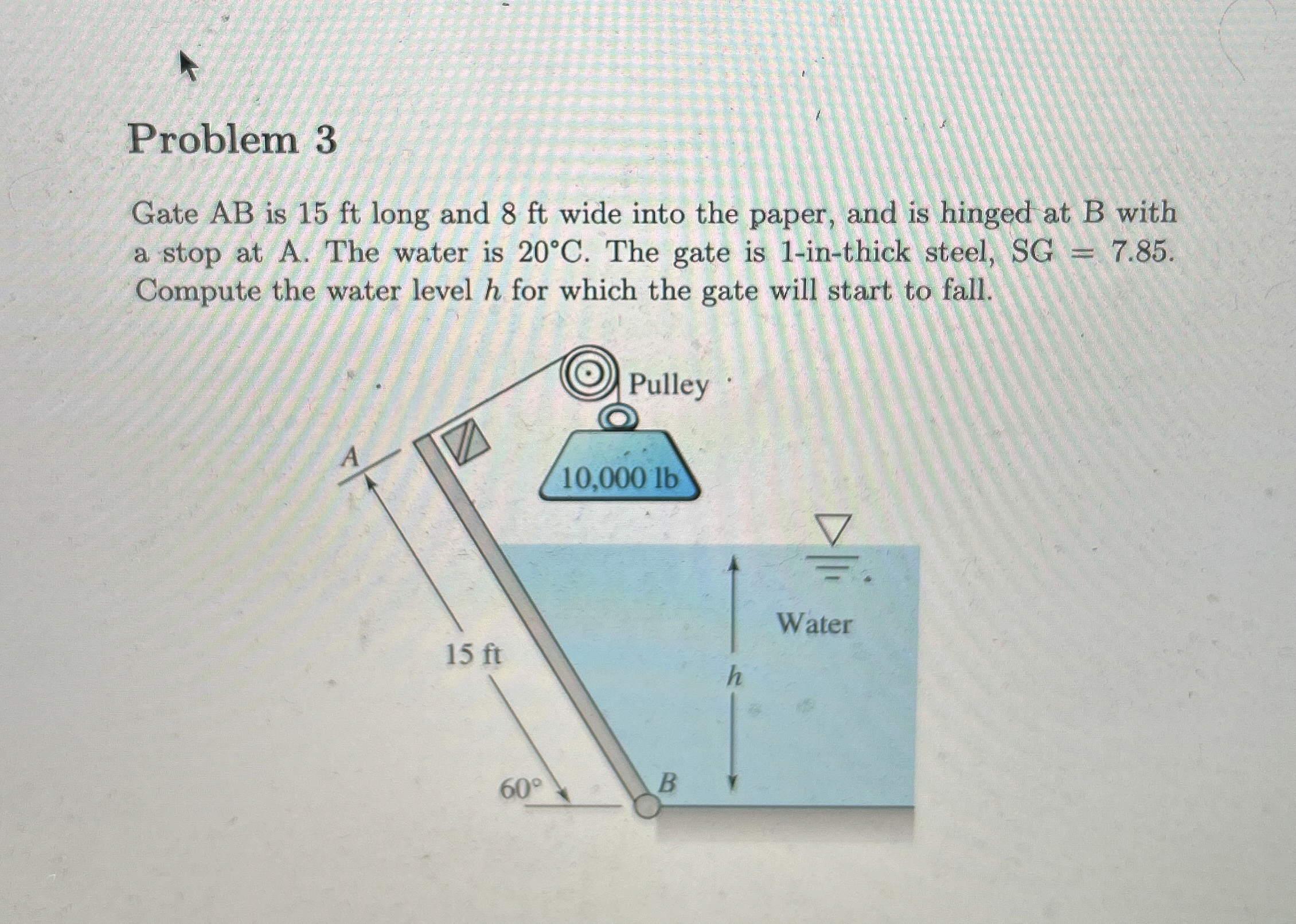

Gate AB is 15 ft long and 8 ft wide into the paper, and is hinged at B with a stop at A . The water is 20C. The gate is 1-in-thick steel, SG=7.85. Compute the water level h for which the gate will start to fall.
Problem 3 Gate AB is 1 5 ft long and 8 ft wide

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
