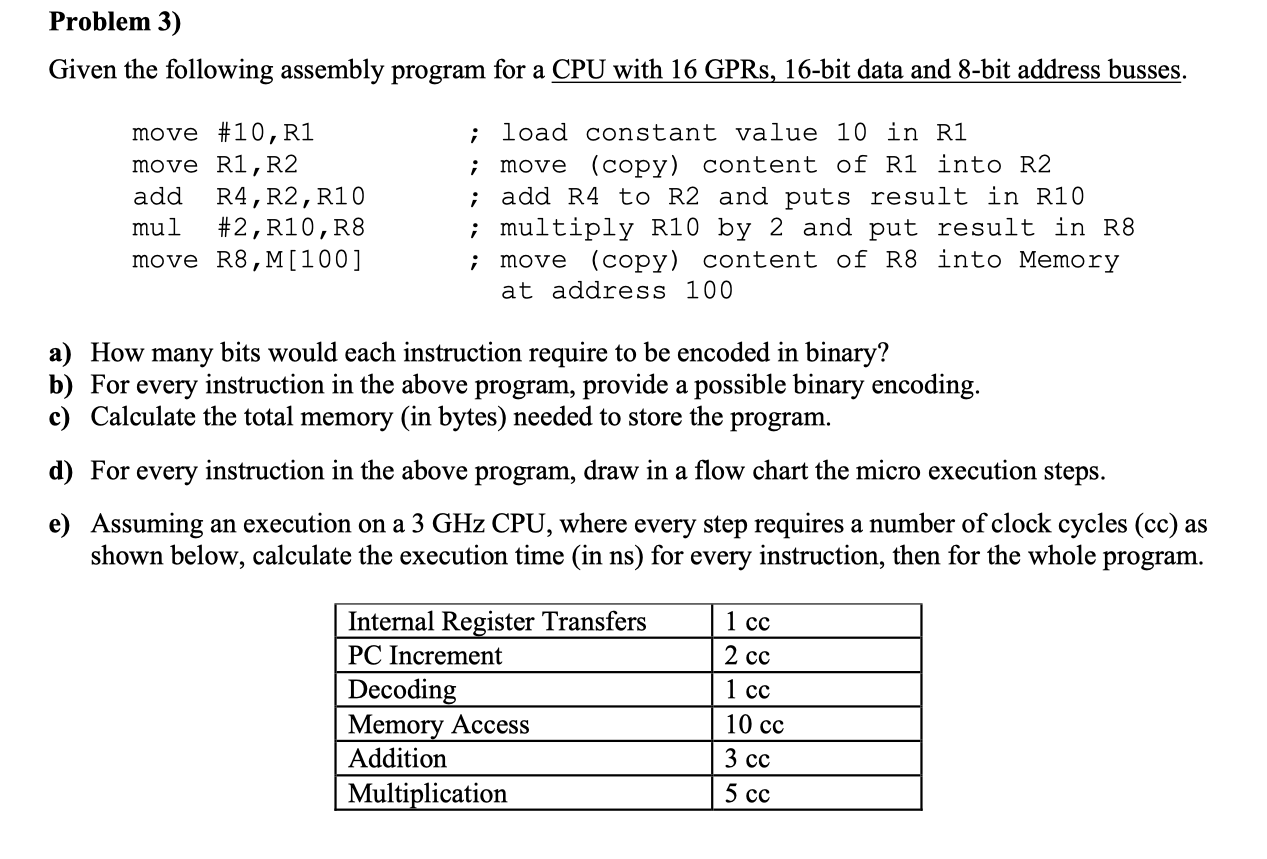

Problem 3) Given the following assembly program for a CPU with 16 GPRs, 16-bit data and 8-bit address busses. move #10, R1 move R1, R2 add R4, R2, R10 mul #2, R10, R8 move R8, M[100] ; load constant value 10 in R1 ; move (copy) content of R1 into R2 ; add R4 to R2 and puts result in R10 ; multiply R10 by 2 and put result in R8 ; move (copy) content of R8 into Memory at address 100 a) How many bits would each instruction require to be encoded in binary? b) For every instruction in the above program, provide a possible binary encoding. c) Calculate the total memory (in bytes) needed to store the program. d) For every instruction in the above program, draw in a flow chart the micro execution steps. e) Assuming an execution on a 3 GHz CPU, where every step requires a number of clock cycles (cc) as shown below, calculate the execution time (in ns) for every instruction, then for the whole program. Internal Register Transfers PC Increment Decoding Memory Access Addition Multiplication 1 cc 2 cc | 1 cc 10 cc 3 cc 5 cc
