Question: Problem 3 . The beam supports a uniform dead load of 2 0 0 l b f t distributed along the whole beam, and a

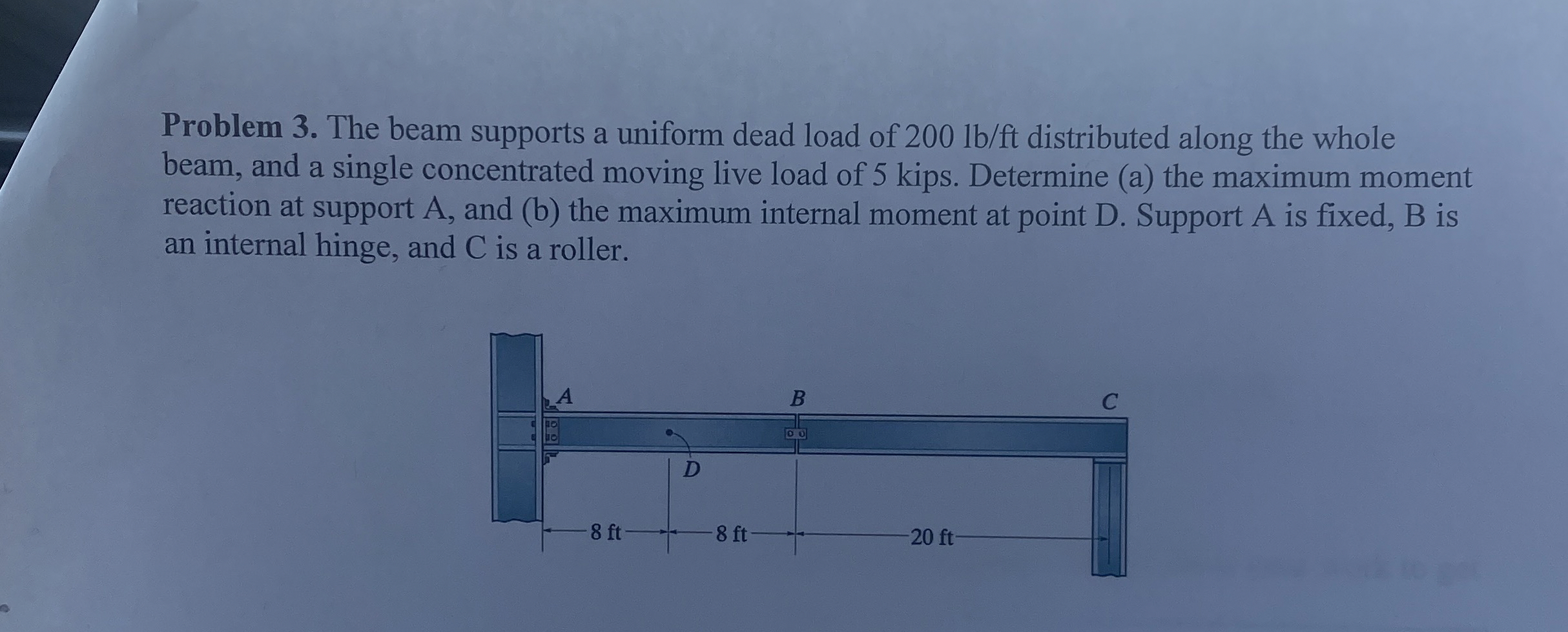

Problem 3. The beam supports a uniform dead load of 200lbft distributed along the whole beam, and a single concentrated moving live load of 5 kips . Determine (a) the maximum moment reaction at support A, and (b) the maximum internal moment at point D. Support A is fixed, B is an internal hinge, and C is a roller.
Problem 3 . The beam supports a uniform dead load

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
