Question: Problem 3 The frame ACD is supported by ball - and - socket joints at A and D and by a cable that passes through

Problem 3

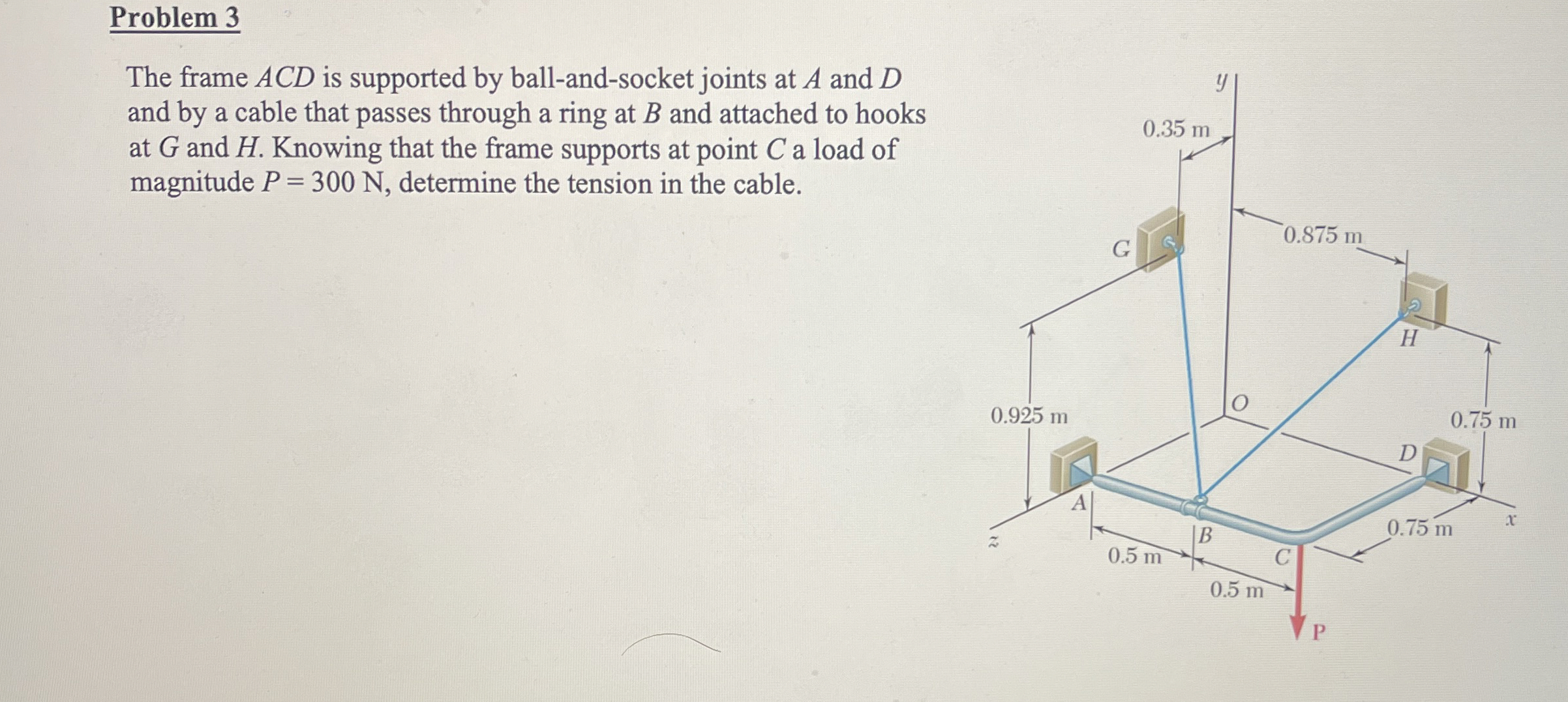

The frame ACD is supported by ball-and-socket joints at A and D and by a cable that passes through a ring at B and attached to hooks at G and H. Knowing that the frame supports at point C a load of magnitude P=300N, determine the tension in the cable.
Problem 3 The frame ACD is supported by ball -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
